Spring Lever Inline Splicing Terminal Block Connector 32A 450V
by Degson
SKU 489321
MPN: DGBSC-SG02/4-01P
Availability:
Out of stock
Sold out
Original price
£0.55
-
Original price
£0.55
Original price
£0.55
Inc VAT
£0.55
-
£0.55
Current price
£0.55
Inc VAT

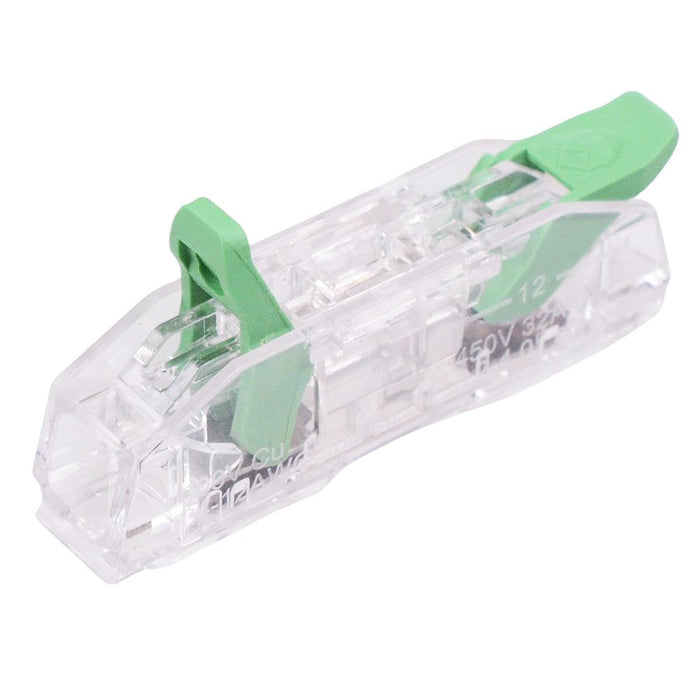

Save time and money with these 2 way inline terminal blocks by Degson. The connectors feature a spring lever allowing both stranded and solid wires to be connected without the need of any tools. The terminal blocks meet numerous certifications ensuring a reliable and strong connection is made with the cable. The spring lever design allows these connectors to be used in seconds unlike traditional screw alternatives and the 32A 450V rating makes them an ideal solution in numerous applications.
2 ways Push in spring connection Rated current: 32A Rated voltage: 450V Compatible wire size: 24~12AWG / 0.2~4.0mm² Strip length: 12-13mm Contact material: tin plated copper Insulation material: PC UL94V-2 Dimensions: 7.5 x 39 x 10.65mm (width x length x height) Certifications: UL, VDE, REACH, RoHS
Specification
| Back order lead time | 120 Days |
| Colour | Green |
| Contact material | Tin Plated Copper |
| Current rating | 32A |
| Housing material | PC |
| Mounting type | Cable Mount |
| Number of ways | 2 |
| Operating temperature | -40°C to +85°C |
| Pitch | 5.6mm |
| Termination method | Spring Clamp |
| Voltage rating | 450VAC |
| Wire range | 24-12AWG |
