SPDT Reed Switch 1A 400V - 2202-1917-060

by Comus
SKU 552469

MPN: 2202-1917-060

15 in stock
Original price £10.46 - Original price £10.46
Original price
£10.46 Inc VAT
£10.46 - £10.46
Current price £10.46 Inc VAT

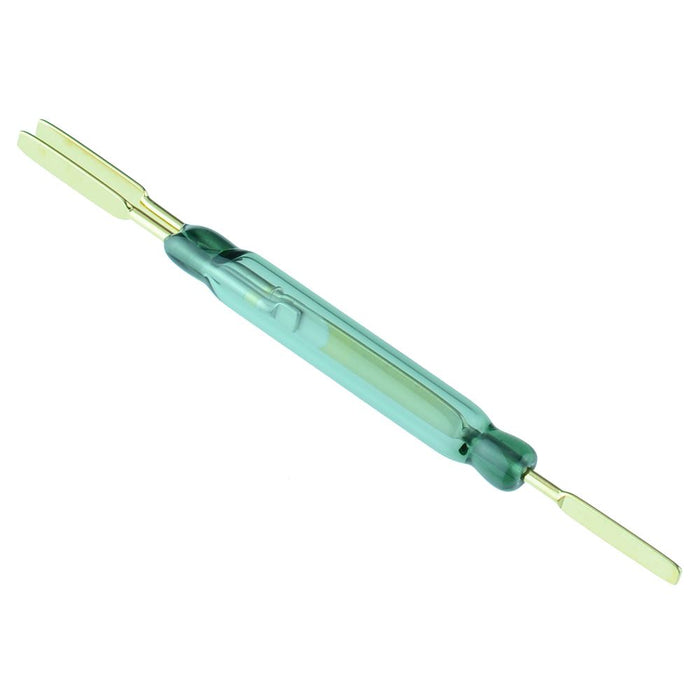

2202-1917-060 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features changeover contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Changeover contacts
  • Maximum switching voltage: 400V AC/DC
  • Maximum switching current: 1A
  • Maximum switching power: 60VA
  • Pull-in sensitivity: 50-80AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.5ms
    Carry current 2A
    Contact configuration SPDT
    Diameter 5.6mm
    Drop out sensitivity 20AT Min
    Length 36mm
    Material Rhodium
    Maximum switching capacity 60VA
    Maximum switching current 1A
    Maximum switching voltage 400VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 50-80AT
    Release time 0.15ms
