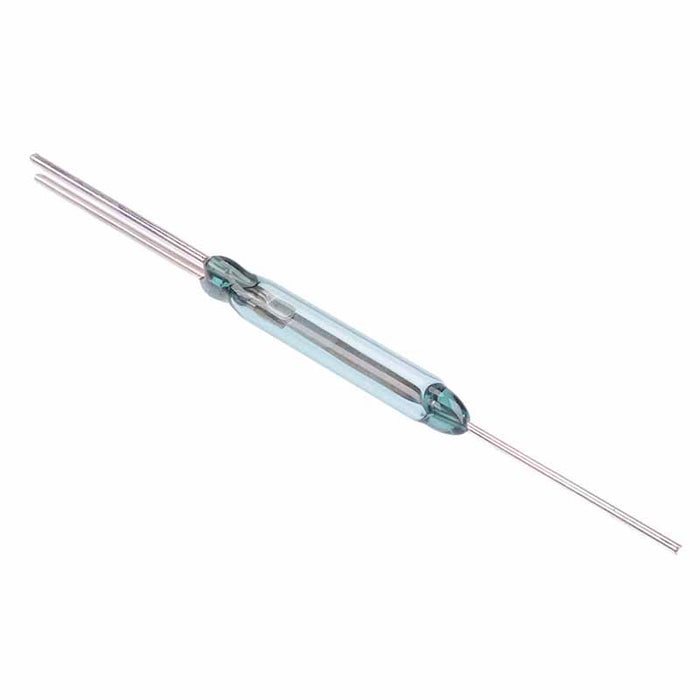

SPDT Reed Switch 0.5A 100VDC

SKU 482568

MPN: 482568

Availability:
230 in stock
Original price £1.70 - Original price £1.70
Original price
£1.70 Inc VAT
£1.70 - £1.70
Current price £1.70 Inc VAT
Reed switch featuring 0.5A maximum switching current and SPDT contacts hemetically sealed within a glass tube. The switch features a quick response time and is lightweight making them suitable for low power applications.

  • Contacts: SPDT
  • Dimensions: 4 x 36mm (diameter x length)
  • Maximum switching voltage: 100VDC
  • Maximum switching current: 0.5A
  • Pull-In value: 40-80AT
  • Specification
    Back order lead time 120 Days
    Bounce time 1ms
    Carry current 2A
    Contact configuration SPDT
    Diameter 4mm
    Drop out sensitivity 15AT Min
    Length 36mm
    Material Rhodium
    Maximum switching current 0.5A
    Maximum switching voltage 100VDC
    Operating temperature -10°C to +70°C
    Pull in sensitivity 40-80AT
    Release time 0.5ms
