SP35W010000 APEM Off-(On) Momentary Snap-Action Right Angle Push Button Switch SPST
by APEM
SKU 488176
MPN: SP35W010000
Availability:
36 in stock
Original price
£2.20
-
Original price
£2.20
Original price
£2.20
Inc VAT
£2.20
-
£2.20
Current price
£2.20
Inc VAT

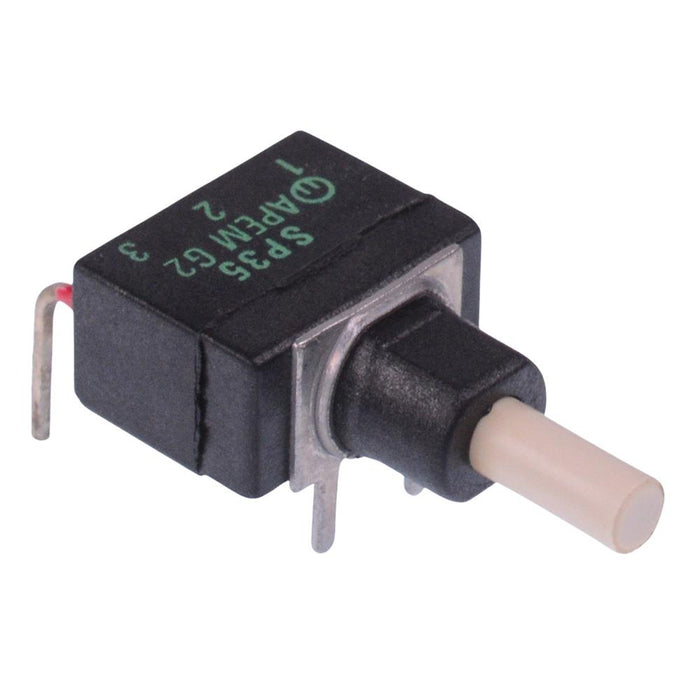

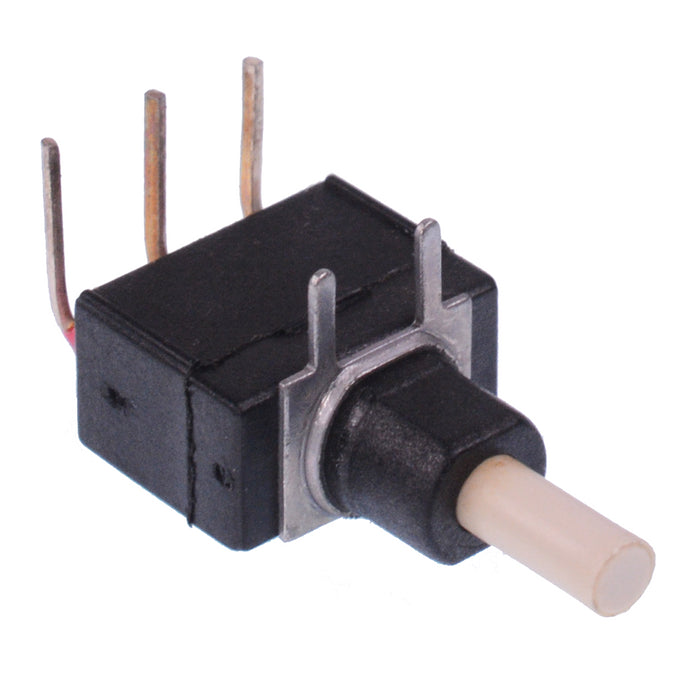

The SP35W010000 is a washable momentary snap-action push button swich with front and rear sealing. The switch features right angle silver terminals, suitable for horizontal PCB mounting.
SPST contacts Off-(On) momentary function Right angle, horizontal mounting Terminal pitch: 4.7mm Rating: 1A 30VDC Silver terminals
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +85°C |
| Product series | SP |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
