SP35W000000 APEM Off-(On) Momentary Snap-Action Right Angle Push Button Switch SPST
by APEM
SKU 487691
MPN: SP35W000000
Availability:
50 in stock
Original price
£5.25
-
Original price
£5.25
Original price
£5.25
Inc VAT
£5.25
-
£5.25
Current price
£5.25
Inc VAT

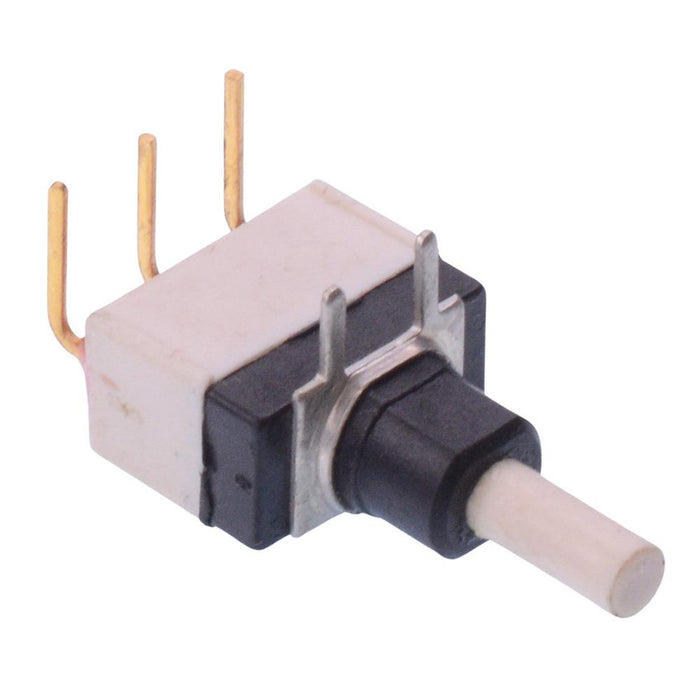

The SP35W000000 is a washable momentary snap-action push button swich with front and rear sealing. The switch features right angle gold plated brass terminals, suitable for horizontal PCB mounting.
SPST contacts Off-(On) momentary function Right angle, horizontal mounting Terminal pitch: 4.7mm Rating: 100mA 30VDC Gold plated brass terminals
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Contact configuration | SPST |
Contact material | Gold Plated Brass |
Contact rating | 0.1A 30VDC |
Current rating | 0.1A |
Electrical life | 60,000 Cycles |
Illuminated | No |
Mounting style | PCB |
Number of poles | 1 |
Number of positions | 2 |
Operating temperature | -20°C to +85°C |
Product series | SP |
Switch operation | Off-(On) |
Terminal type | Solder |
Voltage rating | 30VDC |
