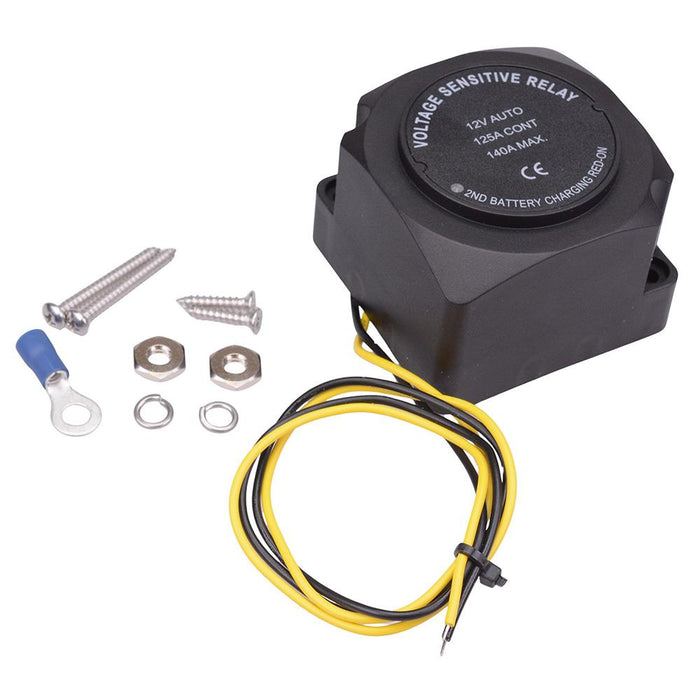

Smart Dual Battery Voltage Sensitive Relay 12VDC

Automotive smart voltage sensitive relay suitable for charging between 2 batteries, allowing charge to flow into one battery when a charging voltage is detected at the other battery. The relay automatically combines both batteries when charging and isolates the two batteries when one is not charging. The relay features an LED indicators which illuminates when the relay is engaged and features a port compatible with an external indicator. The relay is suitable for split charging applications including campervans, motorhomes, marine etc.

Nominal voltage: 12VDC

Relay connects when voltage reaches 13.3V or higher

Relay disconnects when voltage drops 12.65V or lower

Continous current rating: 125A

Cranking current rating: 140A

Port for remote LED indicating

Power consumption: 10mA standby, 330mA engaged, 0mA storage

M6 stud terminals

Removable rear panel

Comes with mounting screws and ring terminals

Dimensions: 68.3 x 68.3 x 53.2mm (width x depth x height)
