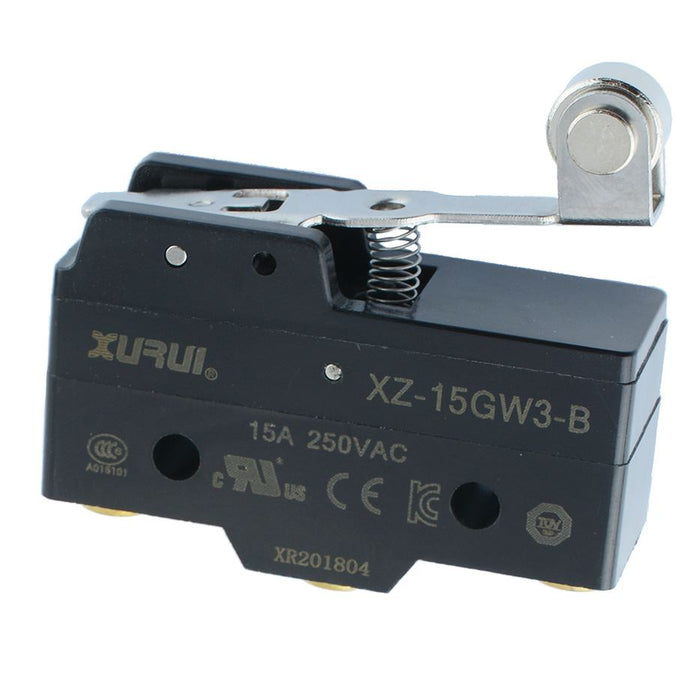

Short Roller Lever Z Series Limit Switch SPDT 15A 250VAC

SKU 480405

MPN: 480405

Availability:
90 in stock
Original price £2.67 - Original price £2.67
Original price
£2.67 Inc VAT
£2.67 - £2.67
Current price £2.67 Inc VAT
Z series heavy duty microswitch featuring a short roller lever actuator and SPDT contacts. The switch is connected using the screw terminals and is suitable for a wide range of applications requiring a reliable microswitch.

  • Short roller lever actuator
  • Rating: 15A 250VAC
  • NO / NC contacts
  • Screw terminals
  • 1,000,000 operation life
  • Operating force: 120g
  • Release force: 25g
  • Specification
    Back order lead time 120 Days
    Contact configuration SPDT
    Contact rating 15A 250VAC
    Current rating 15A
    Electrical life 100,000 Cycles
    Number of positions 2
    Operating force 120g
    Operating temperature -25°C to +80°C
    Protection level IP40
    Release force 25g
    Terminal type Screw
    Voltage rating 250VAC
