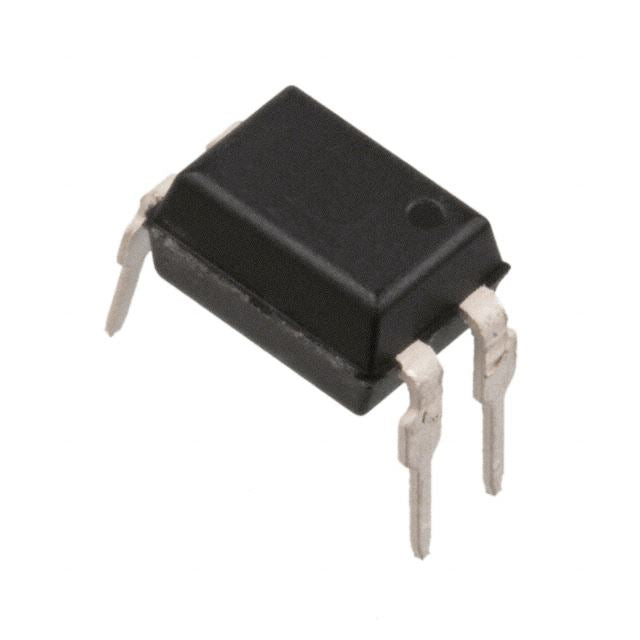

SFH618A-3 Optoisolator 1-Channel 100-200% CTR 5300V DIL-4
by Vishay
SKU 480351
MPN: SFH618A-3
Availability:
Out of stock
Sold out
Original price
£1.18
-
Original price
£1.18
Original price
£1.18
£1.18
£1.18
-
£1.18
Current price
£1.18
The SFH618A-3 features a high current transfer ratio, low coupling capacitance and high isolation voltage. The optocouplers feature a GaAs infrared diode emitter which is optically coupled to silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package.
Low CTR degradation Isolation test voltage: 5300V Low coupling capacitance 100 to 200% CTR DIL-4 package
Specification
| Back Order Lead Time | 5 Days |
| Collector Emitter Voltage | 55V |
| Current Transfer Ratio | 100-200% |
| Forward Current | 60mA |
| Isolation Voltage | 5300V |
| Maximum Forward Voltage | 1.5V |
| Number of Channels | 1 |
| Number of Pins | 4 |
| Typical Fall Time | 5.0μs |
| Typical Rise Time | 3.5μs |
