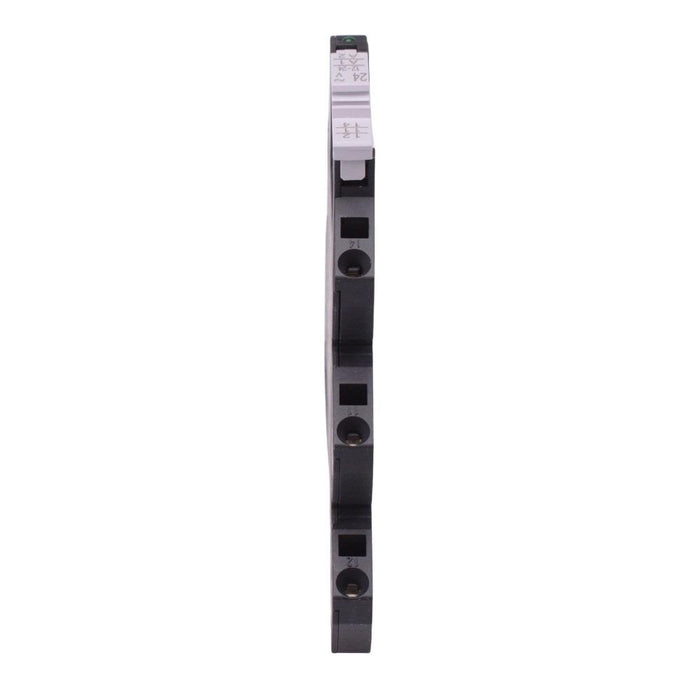

RV8H-S-AD24 DIN Mount 24V 8mm Slim Interface Relay Spring Clamp Terminals SPDT IDEC
by IDEC
SKU 490247
MPN: RV8H-S-AD24
Availability:
10 in stock
Original price
£12.96
-
Original price
£12.96
Original price
£12.96
Inc VAT
£12.96
-
£12.96
Current price
£12.96
Inc VAT
The RV8H-S-AD24 is a interface relay by IDEC providing a compact solution for general purpose requirements. The relay can be used as a universal interface between the controller and the actuator to switch small and medium size loads. Installation time is greatly reduced with pre-assembled relays and socket. The relays are suitable for PLC and other controller outputs, industrial automation, panel builders, assembly machine applications, and other that require a high switching capability in a compact space.
Coil voltage: 24VAC/DC Allowable switching curent: 6A Contact configuration: SPDT DIN rail mounting Spring clamp terminals Universal AC/DC socket with surge suppression and green LED indicator Reverse polarity protected Release lever for easy locking and removal of relay Dimensons: 88.0 x 69.6 x 6.0mm (Height x depth x width)
Specification
| Ambient temperature | -40°C to +70°C |
| Back order lead time | 130 Days |
| Coil voltage | 24VAC/DC |
| Contact arrangement | SPDT |
| Maximum continuous voltage | 26.4VAC/DC |
| Maximum switching current | 6A |
| Moq | 1 |
| Mounting type | DIN Rail |
| Power consumption | 0.33W |
| Rated load | 6A 250VAC, 6A 30VDC |
| Terminal type | Spring Clamp |
