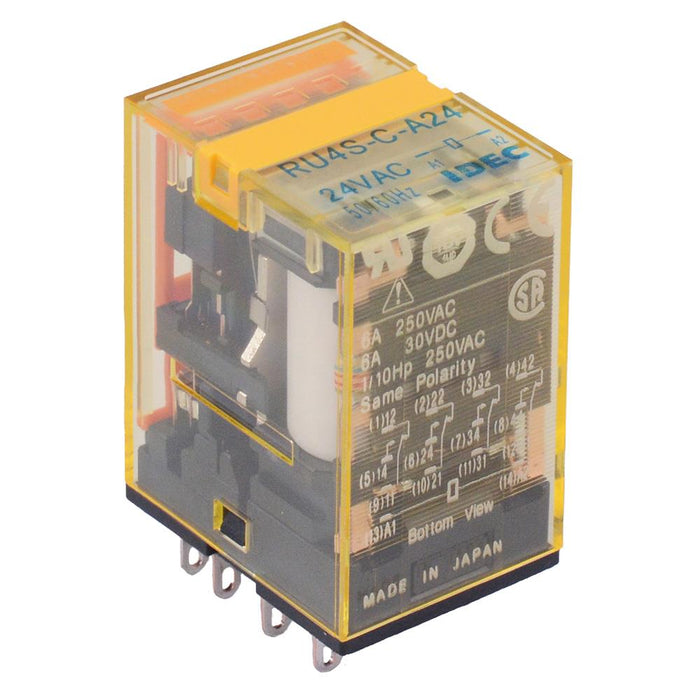

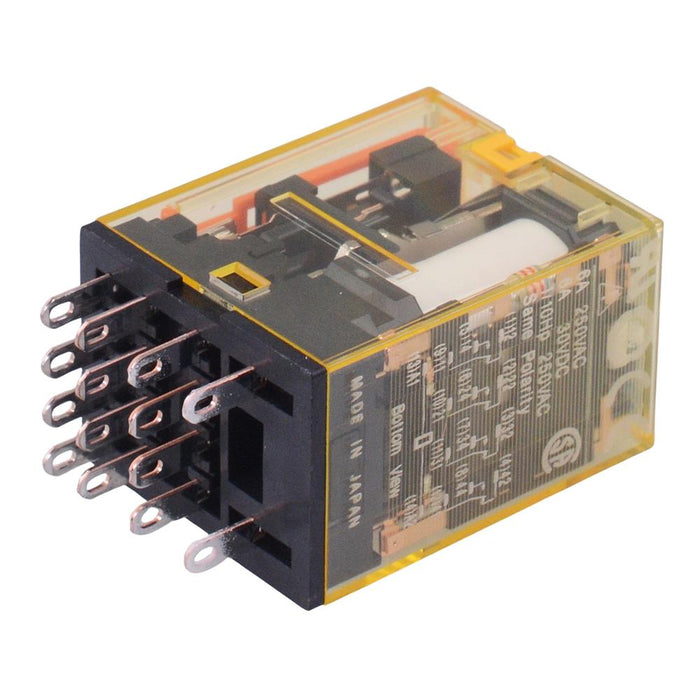

RU4S-C-A24 24VAC Plug In Power Relay 6A 4PDT IDEC
by IDEC
SKU 493316
MPN: RU4S-C-A24
Availability:
10 in stock
Original price
£8.55
-
Original price
£8.55
Original price
£8.55
£8.55
-
£8.55
Current price
£8.55
The RU4S-C-A24 is a 24VAC general purpose power relay featuring an LED indicator and 4PDT contacts. The relay features a 6A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 24VAC Contact rating: 6A 4PDT contacts Without latching lever Non polarised LED indicator Solder-free construction Quick connect terminals Fits RU series four pole mounting socket Dimensions: 35 x 21 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 164Ω |
| Coil Voltage | 24VAC |
| Contact Arrangement | 4PDT |
| Maximum Continuous Voltage | 26.4VAC |
| Maximum Switching Current | 6A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 14 |
| Power Consumption | 1.1 to 1.4VA |
| Rated Load | 6A 250VAC / 30VDC |
| Terminal Type | Blade |
