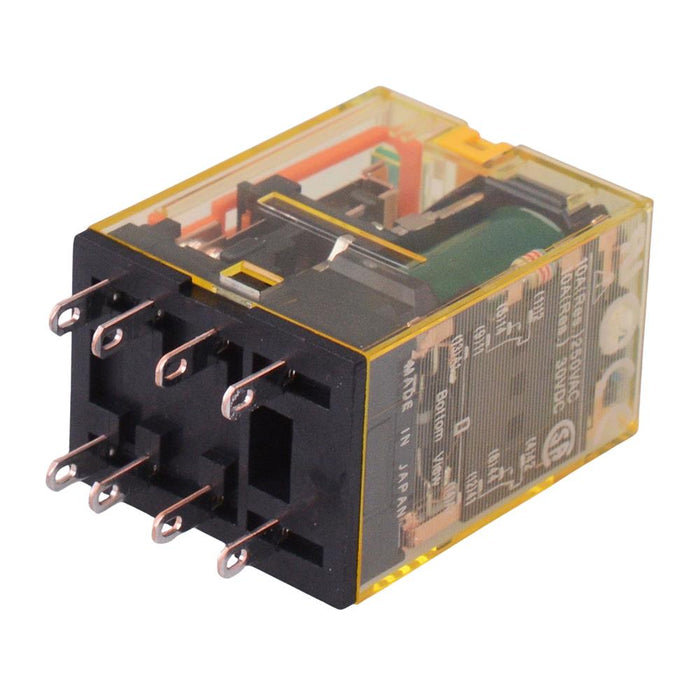

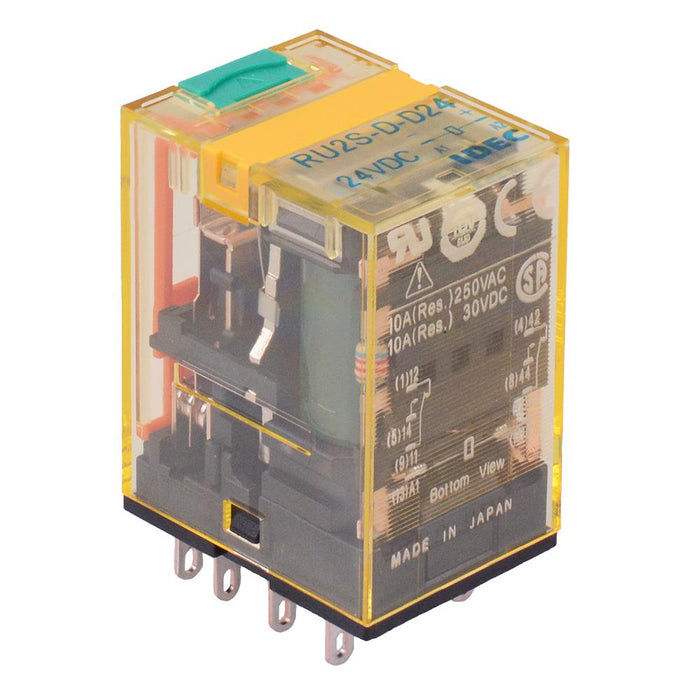

RU2S-D-D24 24VDC Plug In Power Relay Lever Diode 10A DPDT IDEC
by IDEC
SKU 493312
MPN: RU2S-D-D24
Availability:
10 in stock
Original price
£7.77
-
Original price
£7.77
Original price
£7.77
£7.77
-
£7.77
Current price
£7.77
The RU2S-D-D24 is a 24VDC general purpose power relay featuring an LED indicator and DPDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 24VDC Contact rating: 10A DPDT contacts With diode With latching lever Non polarised LED indicator Solder-free construction Quick connect terminals Fits RU series double pole mounting socket Dimensions: 35 x 21 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 605Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 26.4VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 100,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 0.9 to 1.0W |
| Rated Load | 10A 250VAC / 30VDC |
| Terminal Type | Blade |
