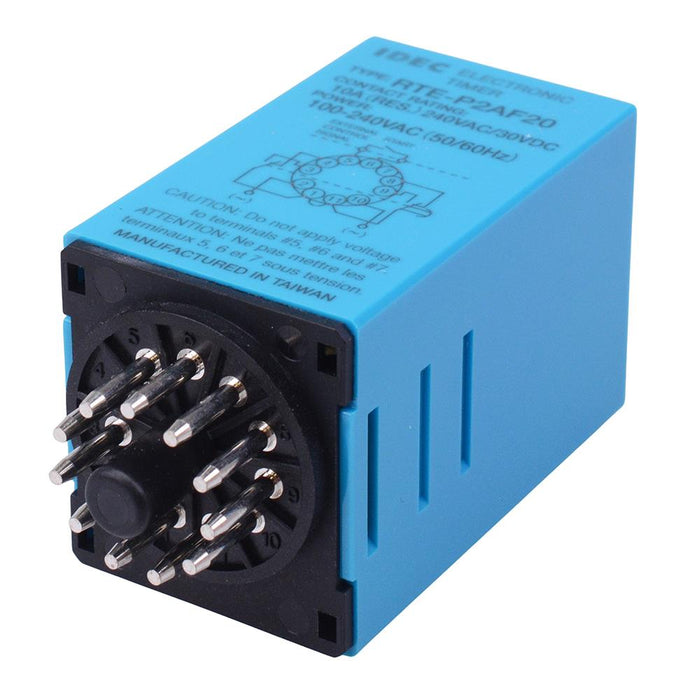

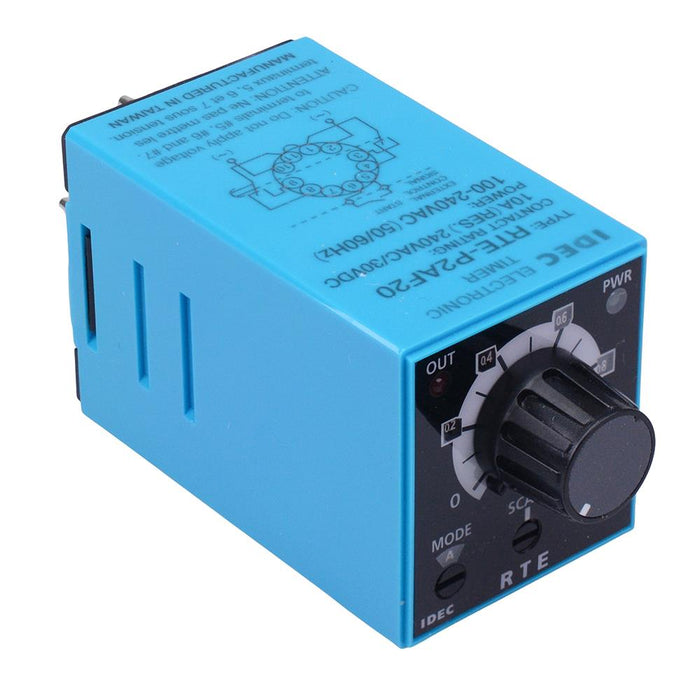

RTE-P2AF20 100-240VAC Time Delay Relay Pin Terminals 10A DPDT IDEC

The RTE-P2AF20 is a highly reliable, analog timer relay housed in a space-saving package, featuring up to 20 selectable time ranges from 0.1 seconds to 600 hours. The timer features DPDT contacts and 10A continous current rating. The timer is suitable for applications including industrial control panels.

Plug-in pin terminals

Start input triggered

Function: ON-delay, cycle OFF, cycle ON, signal ON/OFF delay, OFF-delay, one shot

Input voltage: 100 to 240VAC

Contacts: 2 form C, DPDT

Time delay: 0.1 seconds to 600 hours

ON and timing OUT LED indicator

Contact rating: 240VAC / 30VDC 10A
