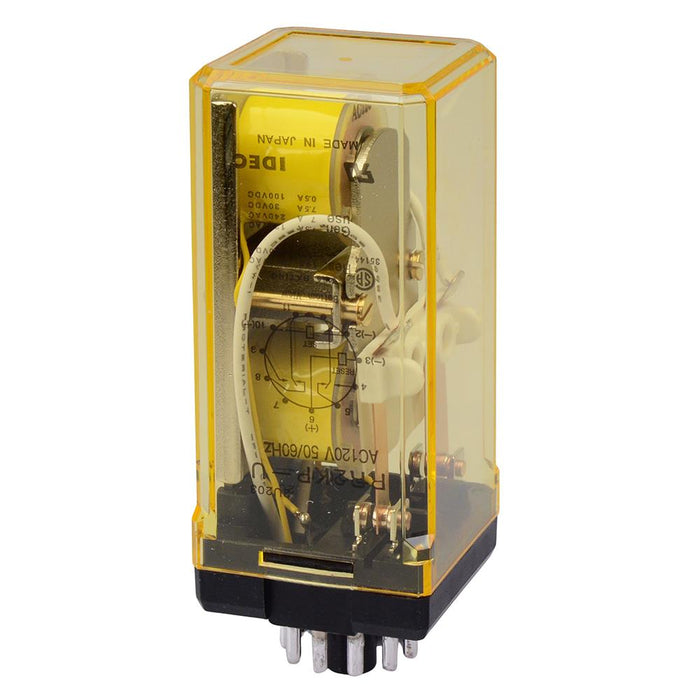

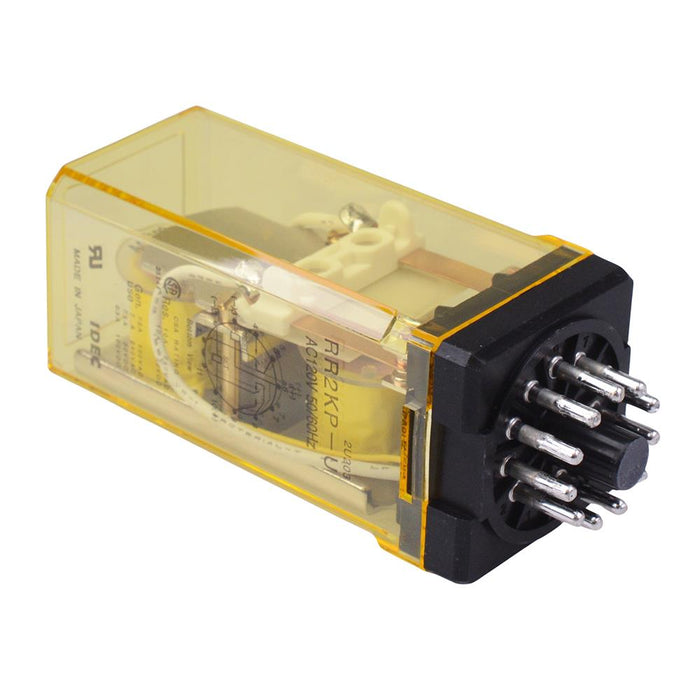

RR2KP-UAC120V 120VAC Latching Plug In Power Industrial Relay 10A DPDT IDEC
by IDEC
SKU 493293
MPN: RR2KP-UAC120V
Availability:
10 in stock
Original price
£47.21
-
Original price
£47.21
Original price
£47.21
£47.21
-
£47.21
Current price
£47.21
The RR2KP-UAC120 is a 120VAC latching power relay with a self-holding function using permanent magnets in the magnetic coil. The self-holding mechanism is not subject to wear unlike mechanical relays and the design provides excellent vibration and shock resistance. The relay features a 10A contact rating and DPDT contacts, suitable for memory and flip-flop circuit applications.
- Coil voltage: 120VAC
- Contact rating: 10A
- DPDT contacts
- Pin terminals
- Fits SR3P-05, SR3P-05C and SR3P-51 sockets
- Body dimensions: 80.5 x 36 x 36mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 2,200Ω |
| Coil Voltage | 120VAC |
| Contact Arrangement | DPDT |
| Electrical Life | 500,000+ Cycles |
| Maximum Continuous Voltage | 132VAC |
| Maximum Switching Current | 10A |
| Mechanical Life | 5,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 11 |
| Power Consumption | 2.4VAC |
| Rated Load | 1650VA AC / 300W DC |
| Terminal Type | Pin |
