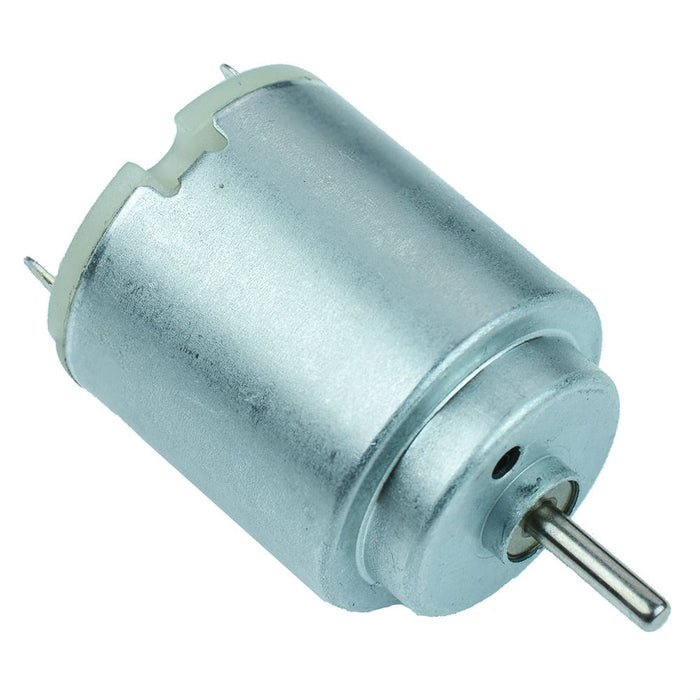

Round Miniature DC Motor 3V 14,700rpm

SKU 551894

MPN: 551894

8806 in stock
Original price £0.58 - Original price £0.58
Original price
£0.58 Inc VAT
£0.58 - £0.58
Current price £0.58 Inc VAT
Miniature round DC motor featuring clockwise rotation, excellent power and efficiency.

  • Dimensions: 25 x 21mm (Length x Diameter)
  • Shaft Size: 8.1 x 2.0mm (Length x Diameter)
  • Nominal Voltage: 3.0VDC
  • Operating Voltage: 1.5-3.0VDC
  • No Load Speed: 14,700RPM
  • No Load Current: 0.3A
  • Output: 1.65W
  • Specification
    Back order lead time 120 Days
    Diameter 21mm
    Length 25mm
    No load current 0.3A
    No load speed 14,700rpm
    Operating voltage 1.5-3V
    Rated load current 1.05A
    Rated load speed 11,524rpm
    Rated voltage 3V
    Shaft diameter 2.0mm
    Shaft length 8.1mm
