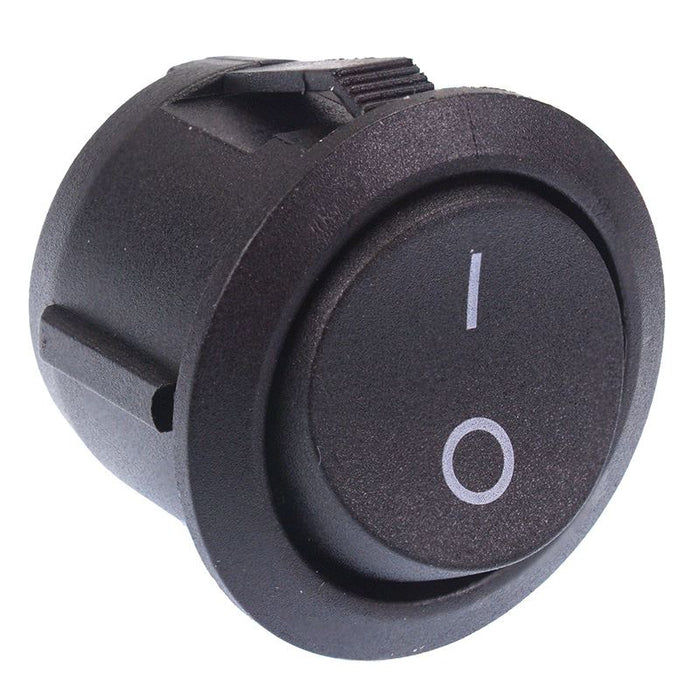

Round Black On-Off Rocker Switch 20mm SPST

SKU 130003

MPN: 130003

Availability:
2364 in stock
Original price £0.44 - Original price £0.44
Original price
£0.44 Inc VAT
£0.44 - £0.44
Current price £0.44 Inc VAT
Low cost circular rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • On-off action
  • SPST contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 20mm
  • Dimensions: 29.3 x 23mm (Height x Diameter)
  • Maximum current: 6A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Contact configuration SPST
    Contact rating 6A 250VAC
    Current rating 6A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 20mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
