Roller Lever Subminiature PCB Microswitch SPDT 3A

Roller Lever Subminiature PCB Microswitch SPDT 3A

by Switch Electronics
SKU 481694

MPN: 481694

Availability:
483 in stock
£0.54 - £0.54
£0.54
£0.54 - £0.54
£0.54
Subminiature microswitch featuring a roller lever actuator housed in a compact package capable of switching up to 3A. The switch features solder terminals and is suitable for PCB applications.

  • 14mm length roller lever actuator
  • Rating: 3A 250VAC
  • NO / NC contacts
  • Solder PCB terminals
  • Operating force: 30gf
  • Release force: 10gf min
  • Pre-travel: 2.7mm max
  • Over-travel 1mm min
  • Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Number of Positions 2
    Operating Force 30g Max
    Pitch 5.1mm
    Release Force 10gf Min
    Terminal Type Through Hole
    Voltage Rating 250VAC
    Request a quote

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    C
    Chris Harwood
    Roller micro switches

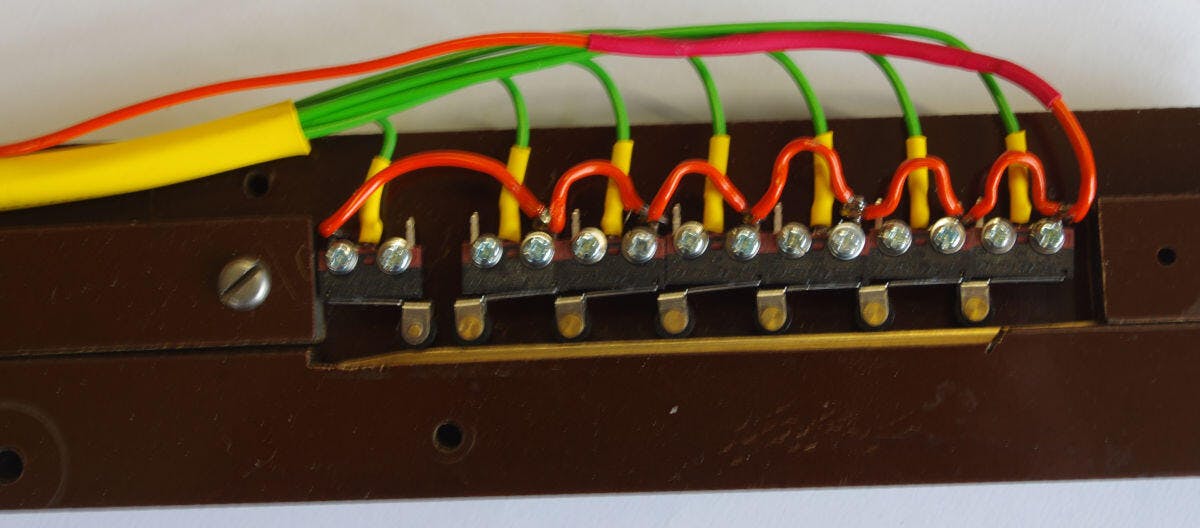

    I needed some really small roller micro switches to upgrade a foot pedal on a church organ whilst money was raised to do the job professionally. These fitted the bill really well, were not expensive and were delivered in good time. I could have used a STEP file to draw up my creation but that's a minor detail.

    User picture
