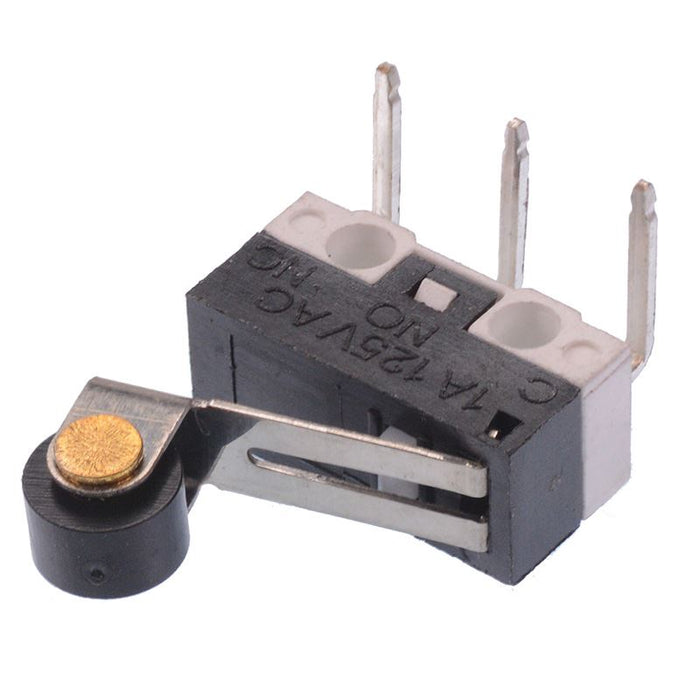

Roller Lever Subminiature Horizontal PCB Microswitch SPDT 3A

SKU 483514

MPN: 483514

Availability:
921 in stock
Original price £0.41 - Original price £0.41
Original price
£0.41
£0.41 - £0.41
Current price £0.41
Subminiature microswitch featuring a roller lever actuator housed in a compact package capable of switching up to 3A. The switch features left hand PCB terminals and is suitable for a wide range of applications.

  • Roller lever actuator
  • Rating: 3A 250VAC
  • NO / NC contacts
  • Left hand PCB terminals
  • Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
  • Specification
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 50,000 Cycles
    Mounting Style PCB
    Number of Positions 2
    Operating Force 100gf
    Operating Temperature -25°C to +85°C
    Terminal Type Through Hole
    Voltage Rating 250VAC
