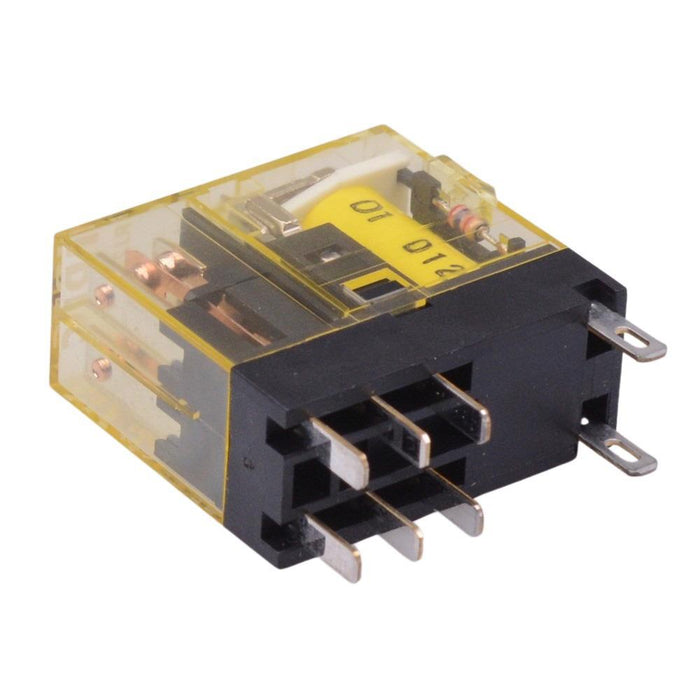

RJ2S-CLD1-D12 12VDC Plug In Slim Power Industrial Relay Diode 8A DPDT IDEC
by IDEC
SKU 490218
MPN: RJ2S-CLD1-D12
Availability:
10 in stock
Original price
£12.61
-
Original price
£12.61
Original price
£12.61
Inc VAT
£12.61
-
£12.61
Current price
£12.61
Inc VAT
The RJ2S-CLD1-D12 is a compact and rugged power relay with a slim design and large switching capacity. The relay features plug-in terminals and excellent durability due to its unique return spring structure. With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays. The relay features an IEC-compliant high visibility green LED indicator and it is designed for various applications such as control panels and machine tools.
Coil voltage: 12VDC Switching current: 8A With LED indicator With reverse polarity diode Long mechanical life Contact rating: 8A 250VAC/DC Contact configuration: DPDT Plug-in terminals Compatible socketa: SJ2S-05B, SJ2S-07L, SJ2S-21L Dimensions: 33 x 28.8 x 12.7mm (height x length x width)
Specification
| Ambient temperature | -40°C to +70°C |
| Back order lead time | 130 Days |
| Coil resistance | 271Ω |
| Coil voltage | 12VDC |
| Contact arrangement | DPDT |
| Maximum continuous voltage | 20.4VDC |
| Maximum switching current | 8A |
| Moq | 1 |
| Mounting type | Plug In |
| Number of contacts | 8 |
| Power consumption | 0.53W |
| Terminal type | Plug In |
