RJ1S-CL-A110 110VAC Plug In Slim Power Industrial Relay 12A SPDT IDEC
by IDEC
SKU 490210
MPN: RJ1S-CL-A110
Availability:
10 in stock
Original price
£11.56
-
Original price
£11.56
Original price
£11.56
Inc VAT
£11.56
-
£11.56
Current price
£11.56
Inc VAT

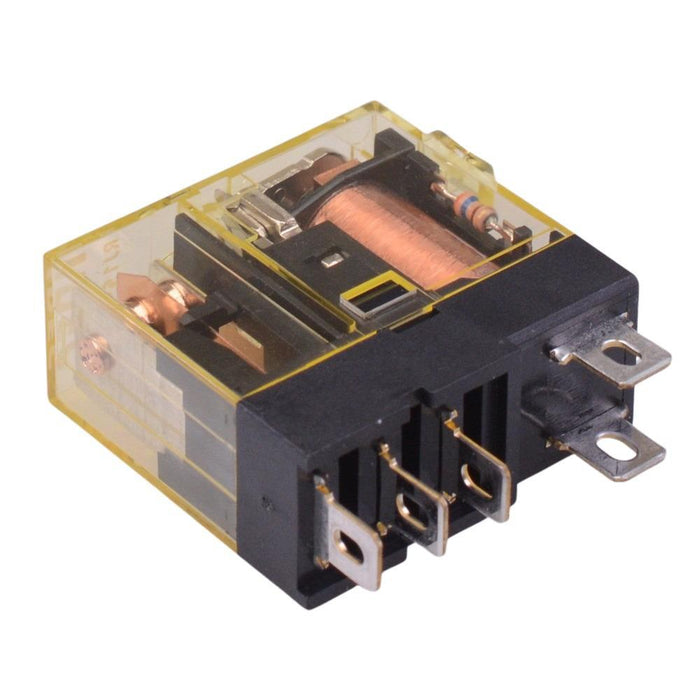

The RJ1S-CL-A110 is a compact and rugged power relay with a slim design and large switching capacity. The relay features plug-in terminals and excellent durability due to its unique return spring structure. With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays. The relay features an IEC-compliant high visibility green LED indicator and it is designed for various applications such as control panels and machine tools.
Coil voltage: 110VAC Switching current: 12A With LED indicator Long mechanical life Contact rating: 12A 250VAC/DC Contact configuration: SPDT Plug-in terminals Compatible socketa: SJ1S-05B, SJ1S-07L, SJ1S-21L Dimensions: 33 x 28.8 x 12.7mm (height x length x width)
Specification
| Ambient temperature | -40°C to +70°C |
| Back order lead time | 130 Days |
| Coil resistance | 5270Ω |
| Coil voltage | 110VAC |
| Contact arrangement | SPDT |
| Maximum continuous voltage | 154VAC |
| Maximum switching current | 12A |
| Moq | 1 |
| Mounting type | Plug In |
| Number of contacts | 5 |
| Power consumption | 0.9VA |
| Terminal type | Plug In |
