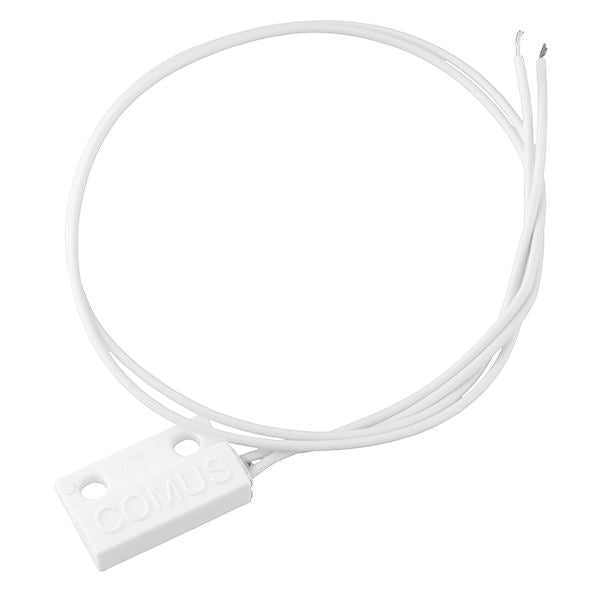

Right Hand Reed Switch Flange Mount SPST-NO 500mA 240V - LMSA 240/30, S1682G

The LMSA 240/30 is a rectangular reed switch featuring normally open contacts and a ABS case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.

Suggested magnet: LMSM

Right handed entry

Normally open contacts

Glass filled nylon case

Maximum switching voltage: 240VAC

Maximum switching current: 0.5A

Maximum switching capacity: 10VA

Switching distance: 5mm Min

White 7/0.2mm² PVC cable
