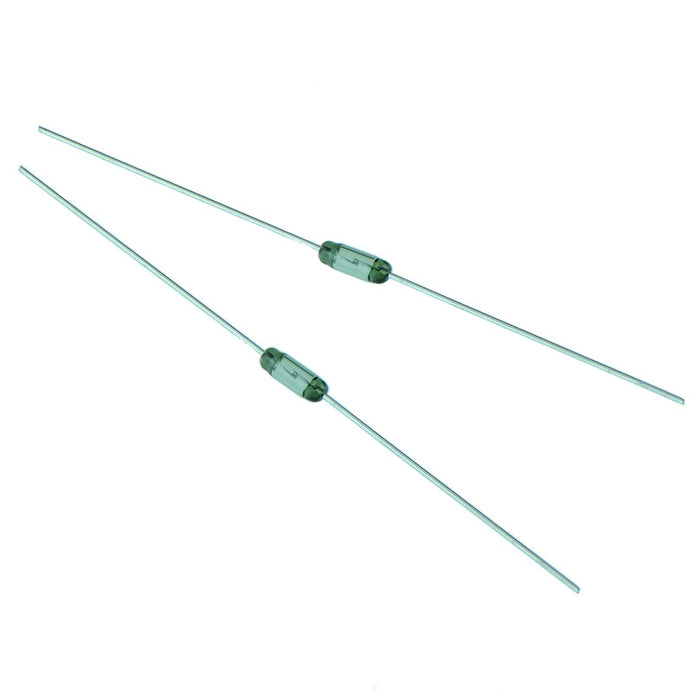

RI-80 SPST-NO Reed Switch High Medium Kit

by Comus
SKU 552514

MPN: RI-80K

Availability:
Out of stock
Sold out
Original price £1.91 - Original price £1.91
Original price
£1.91 Inc VAT
£1.91 - £1.91
Current price £1.91 Inc VAT
The RI-80 kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts, actuated using an electro-magnet.

  • Includes qty 1 of each sensitivity high and medium
  • Ideal for ATE switching
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Operating range: 5-10, 10-15AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.1ms
    Carry current 0.5A
    Contact configuration SPST-NO
    Diameter 1.8mm
    Length 5mm
    Material Rhodium
    Maximum switching capacity 5W
    Maximum switching current 0.25A
    Operating temperature -55°C to +125°C
    Pull in sensitivity 5-10, 10-15AT
    Release time 20µs
