RI-27 SPST-NO Reed Switch High Medium Low Kit

by Comus
SKU 552503

MPN: RI-27K

Availability:
Only 4 left!
Original price £2.69 - Original price £2.69
Original price
£2.69 Inc VAT
£2.69 - £2.69
Current price £2.69 Inc VAT

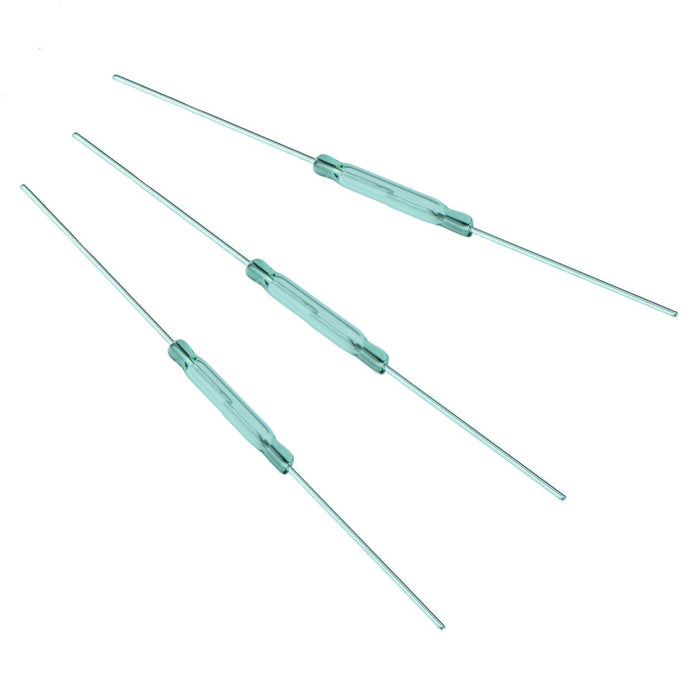

The RI-27 kit provides a selection of sensitivity levels from the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts, actuated using an electro-magnet.

  • Includes qty 1 of each sensitivity high, medium, low
  • Ideal for ATE switching
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Operating range: 10-20, 15-25, 20-34AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.05ms
    Contact configuration SPST-NO
    Diameter 1.8mm
    Length 13.5mm
    Material Rhodium
    Maximum switching capacity 10W
    Maximum switching current 0.5A
    Operating temperature -55°C to +125°C
    Pull in sensitivity 10-20, 15-25, 20-34AT
    Release time 30µs
