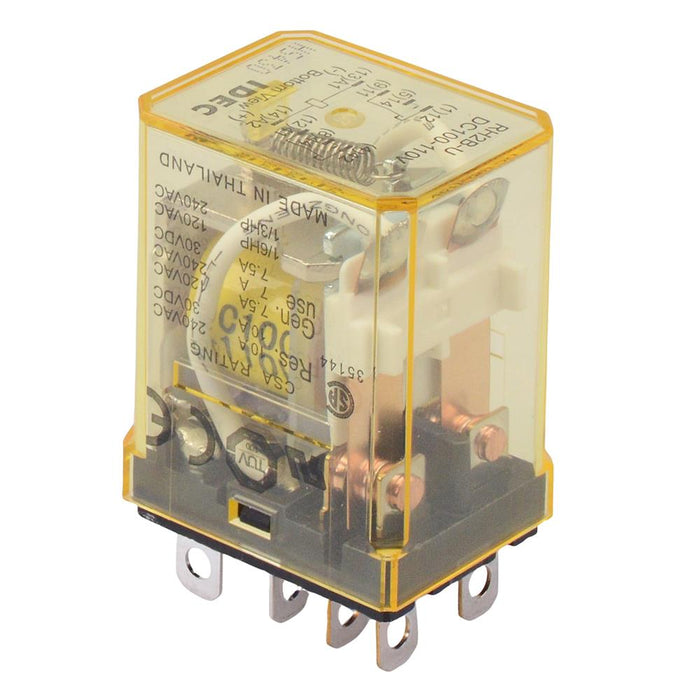

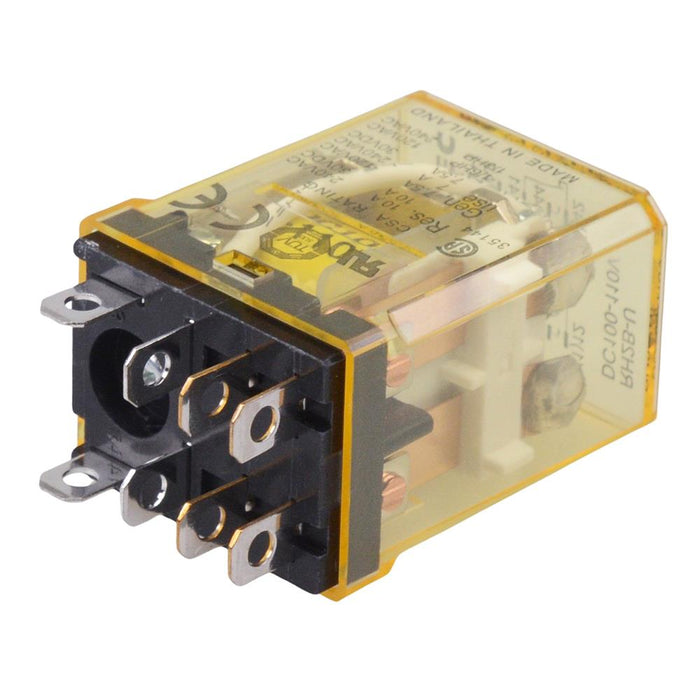

RH2B-UDC100-110V 100-110VDC Plug In Compact Power Relay 10A DPDT IDEC
by IDEC
SKU 493261
MPN: RH2B-UDC100-110V
Availability:
10 in stock
Original price
£9.20
-
Original price
£9.20
Original price
£9.20
£9.20
-
£9.20
Current price
£9.20
The RH2B-UDC100-110 is a 100-110VDC compact power relay featuring blade terminals and DPDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 100-110VDC Contact rating: 10A DPDT contacts Without LED indicator 4.7mm quick connect terminals Fits SH2B-05 and SH2B-05C DIN rail sockets Dimensions: 42 x 21 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Voltage | 100-110VDC |
| Contact Arrangement | DPDT |
| Electrical Life | 500,000+ Cycles |
| Maximum Continuous Voltage | 110-121VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 8 |
| Power Consumption | 0.9W |
| Rated Load | 1650VA / 300W |
| Terminal Type | Quick Connect |
