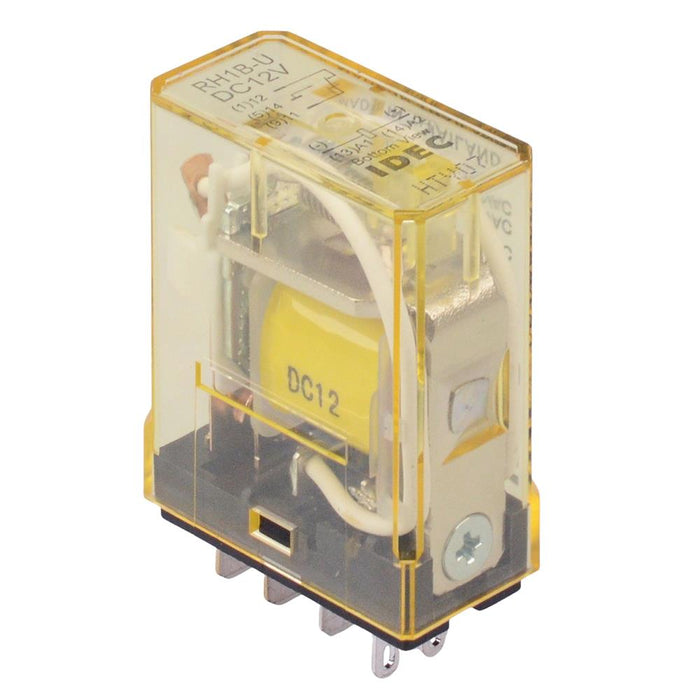

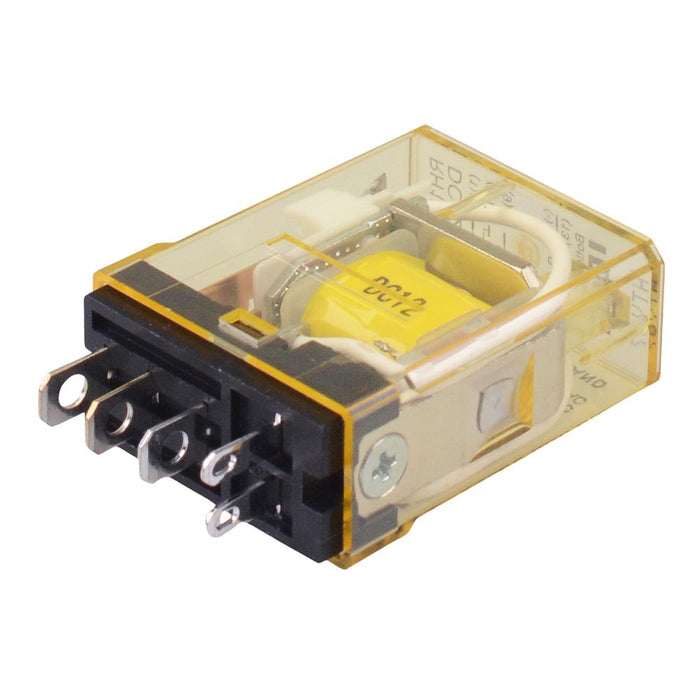

RH1B-UDC12V 12VDC Plug In Compact Power Relay 10A SPDT IDEC
by IDEC
SKU 493252
MPN: RH1B-UDC12V
Availability:
10 in stock
Original price
£7.86
-
Original price
£7.86
Original price
£7.86
£7.86
-
£7.86
Current price
£7.86
The RH1B-UDC12 is a 12VDC compact power relay featuring blade terminals and SPDT contacts. The relay features a 10A contact rating and is suitable for plug-in mounting applications.
Coil voltage: 12VDC Contact rating: 10A SPDT contacts Without LED indicator 4.7mm quick connect terminals Fits SH1B-05 and SH1B-05C DIN rail sockets Dimensions: 42 x 14 x 27.5mm (height x width x length)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 165Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPDT |
| Electrical Life | 200,000+ Cycles |
| Maximum Continuous Voltage | 13.2VDC |
| Maximum Switching Current | 10A |
| Mechanical Life | 50,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 0.8W |
| Rated Load | 1540VA / 300W |
| Terminal Type | Quick Connect |
