RGB Momentary 19mm Vandal Resistant Switch 12V
by Langir
SKU 482548
MPN: L19T-FM1SR3A12V
Availability:
34 in stock
Original price
£11.36
-
Original price
£11.36
Original price
£11.36
Inc VAT
£11.36
-
£11.36
Current price
£11.36
Inc VAT

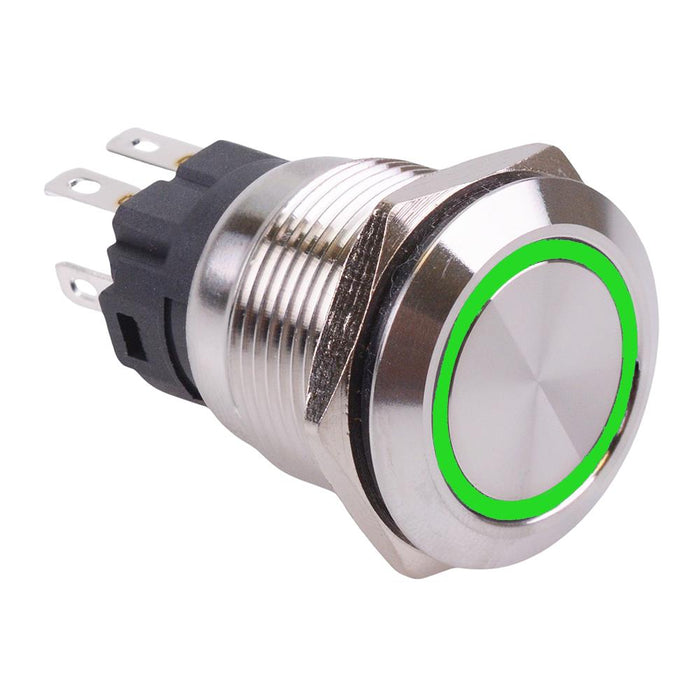

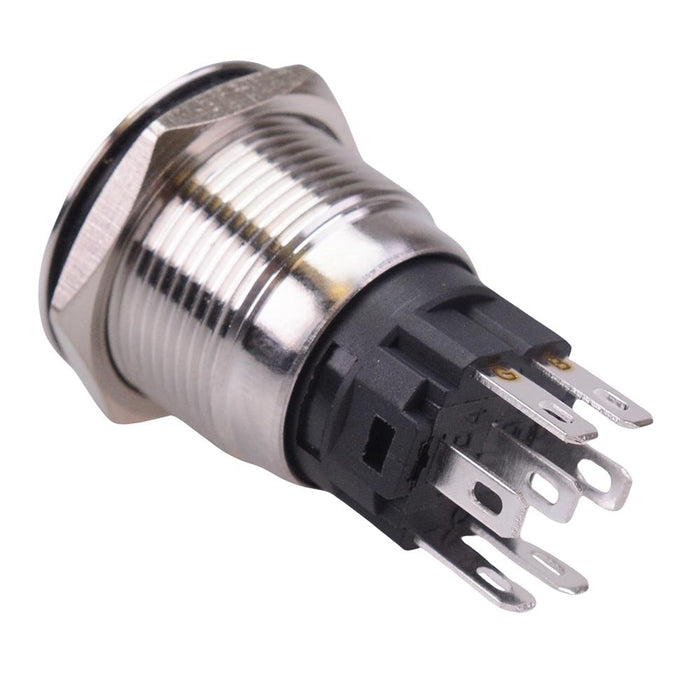

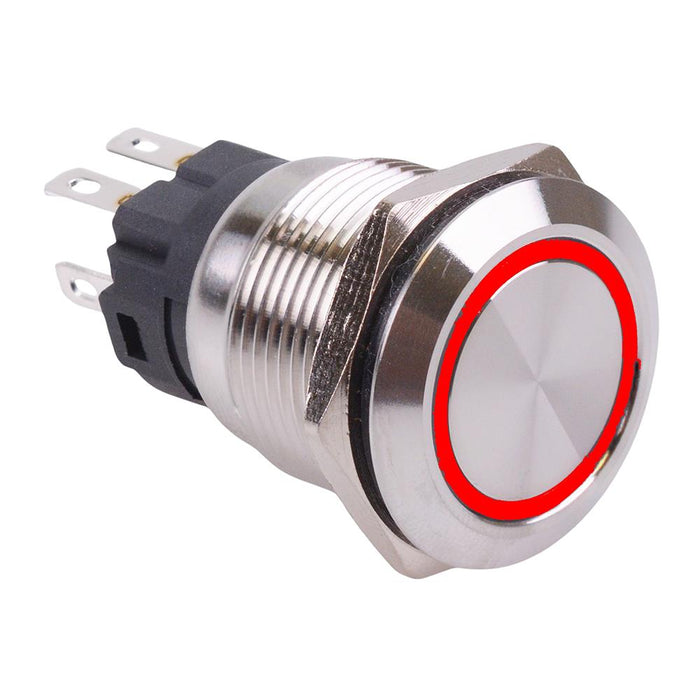

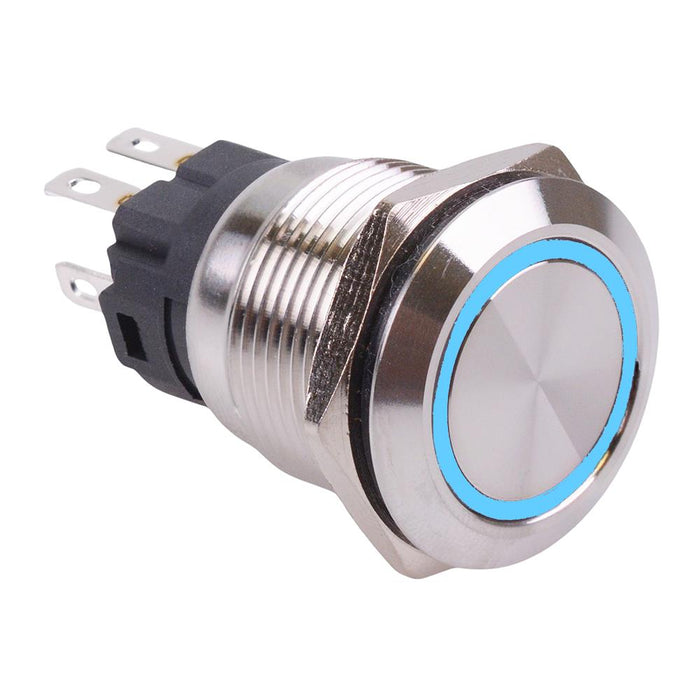

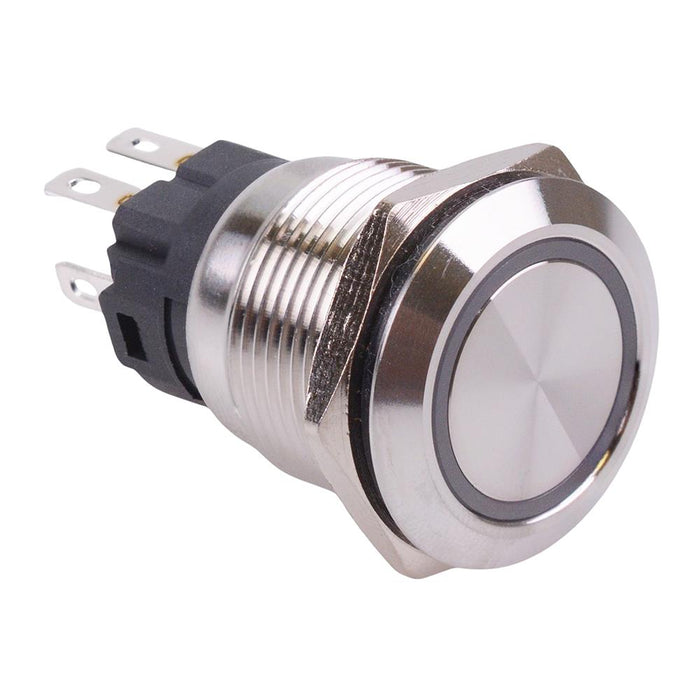

Anti vandal momentary push button switch manfuactured from stainless steel, featuring a RGB LED. The switch features NO / NC contacts and requires a 19mm panel cut-out making it suitable for a wide range of 12V applications.
Momentary switch action NO / NC contacts RGB 12V LED Panel cut-out: 19mm Maximum panel thickness: 10mm Rating: 3A 250VAC Protection rating: IP65 2.8mm quick connect terminals Dimensions: 37 x 22mm (Length x Diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Colour | RGB |
| Contact configuration | SPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 100,000 Cycles |
| Illuminated | Yes |
| Illumination colour | RGB |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 19mm |
| Panel thickness | 1.0-10mm |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
