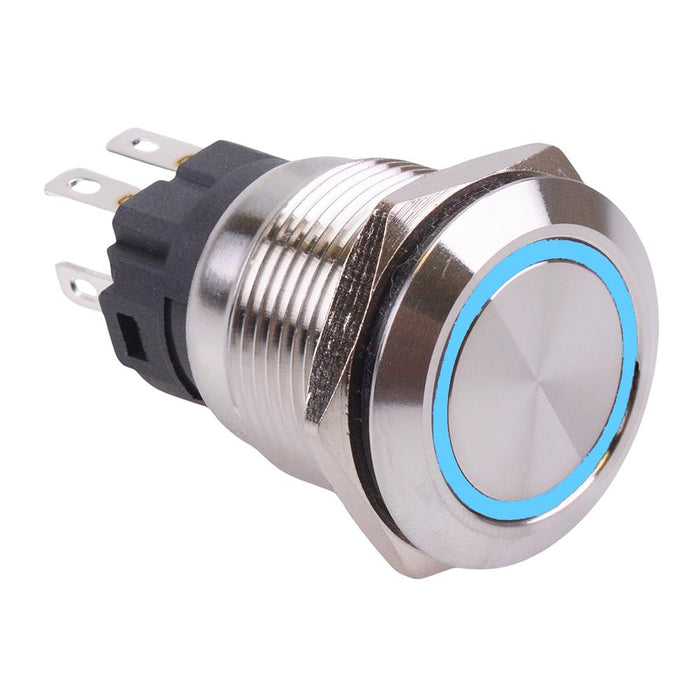

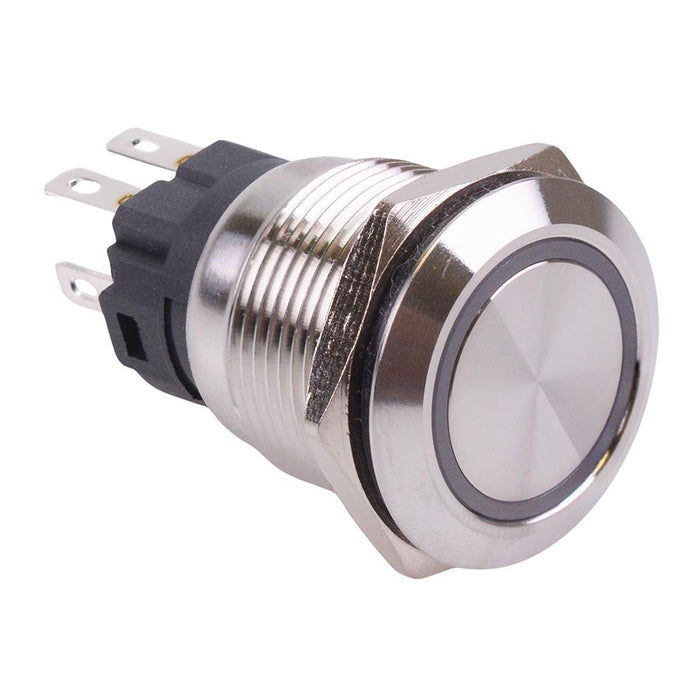

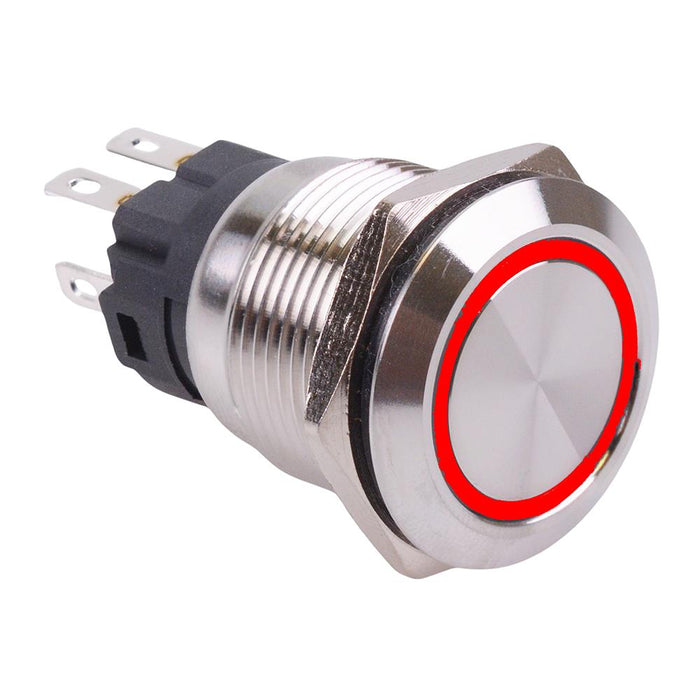

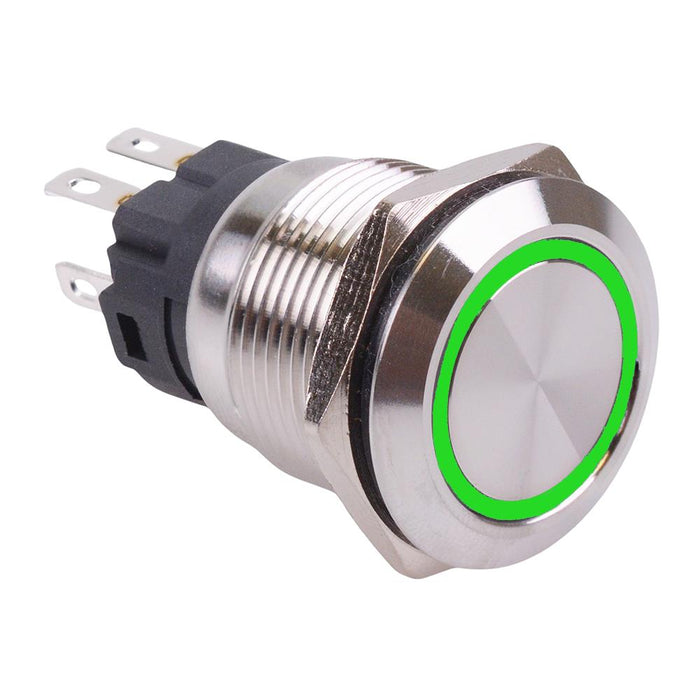

RGB Latching 19mm Vandal Resistant Push Button Switch 12V SPDT

by Langir
SKU 482549

MPN: L19T-FZ1SR3A12V

Availability:
49 in stock
Original price £11.30 - Original price £11.30
Original price
£11.30
£11.30 - £11.30
Current price £11.30
Latching stainless steel vandal resistant push button switch featuring a RGB LED and IP65 protecton rating. The switch fits 19mm panel cut-outs and is suitable for a wide range of 12V applications including automotive.

  • Latching switch action
  • NO / NC contacts
  • RGB 12V LED
  • Panel cut-out: 19mm
  • Maximum panel thickness: 10mm
  • Rating: 3A 250VAC
  • Protection rating: IP65

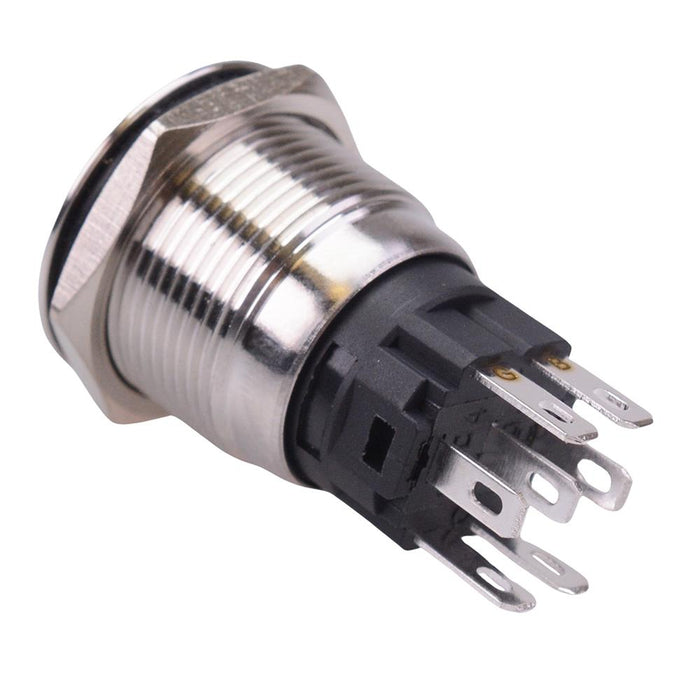

  • 2.8mm quick connect terminals
  • Dimensions: 37 x 22mm (Length x Diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 45 Days
    Colour RGB
    Contact Configuration SPDT
    Contact Rating 3A 250VAC
    Current Rating 3A
    Electrical Life 100,000 Cycles
    Illuminated Yes
    Illumination Colour RGB
    Illumination Voltage 12VDC
    Material Stainless Steel
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -20°C to +55°C
    Panel Cut Out 19mm
    Panel Thickness 1.0-10mm
    Protection Level IP65
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 250VAC
