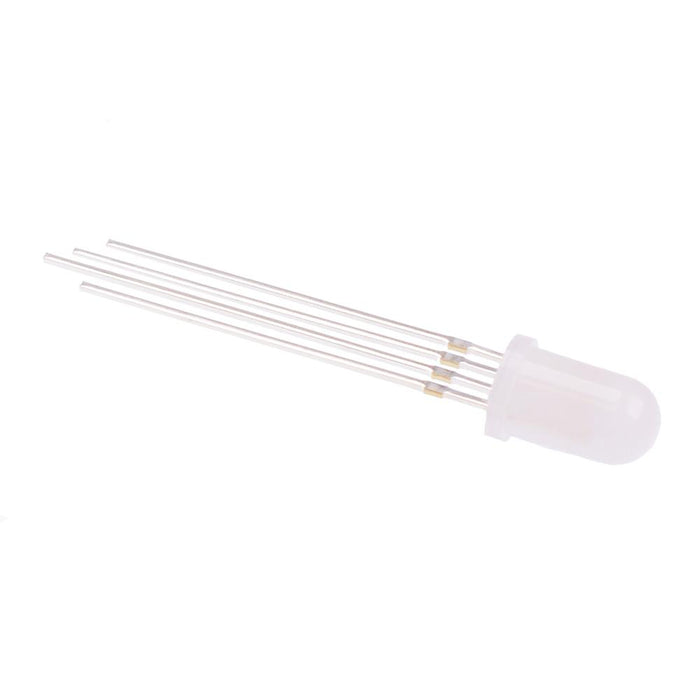

RGB 5mm White Diffused LED Common Anode 60°
by Luckylight
SKU 490455
MPN: 509RGBM2E-004
Availability:
4975 in stock
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.32
£0.32
-
£0.32
Current price
£0.32
RGB 5mm LEDs featuring a white diffused lens and uniform light output. The LEDs feature a long lifespan making them suitable for applications including indicators, backlighting, telecommunications and general illumination.
Luminous intensity: red 450mcd, green 1500mcd, blue 200mcd Wavelength: red 624nm, green 525nm, blue 470nm Viewing angle: 60° Forward voltage: red 2.0V, green, 3.2V, blue 3.2V Forward current: 25mA Suitable for through-hole mounting Common anode 1.27mm lead pitch White diffused lens Excellent weather resistance Long lifespan
Specification
| Back Order Lead Time | 40 Days |
| Colour | RGB |
| Diameter | 5mm |
| Forward Current | 25mA |
| Forward Voltage | Red 2.0V, Green 3.2V, Blue 3.2V |
| Lens Colour | White |
| Lens Shape | Round |
| Luminous Intensity | Red 450mcd, Green 1500mcd, Blue 200mcd |
| Mode | Constant |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Number of Pins | 4 |
| Operating Temperature | -40°C to 80°C |
| Package | 5mm |
| Packaging | Bulk |
| Power Dissipation | Red 60mW, Green 90mW, Blue 90mW |
| Viewing Angle | 60° |
| Wavelength | Red 624nm, Green 525nm, Blue 470nm |
