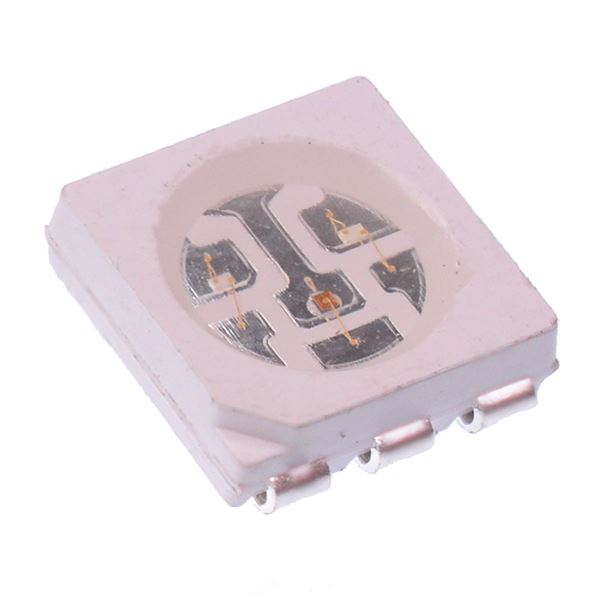

RGB 5050 PLCC-6 Water Clear SMD LED 120°

SKU 484862

MPN: R5050RGBC-001

Availability:
1583 in stock
Original price £0.24 - Original price £0.24
Original price
£0.24 Inc VAT
£0.24 - £0.24
Current price £0.24 Inc VAT
RGB surface mount LED housed in a 5050 package featuring a high luminous intensity suitable for a wide range of applications including automotive, backlighting and indicator uses.

  • 5050 PLCC-6 package
  • Luminous intensity: red 600mcd, green 1250mcd, blue 350mcd
  • 120° viewing angle
  • Wavelength: red 624nm, green 525nm, blue 470nm
  • Forward voltage: red 2.1V, green 3.2V, blue 3.2V
  • Forward current: 25mA
  • Water clear lens
  • UV resistant
  • Supplied on tape packaging
  • Dimensions: 5.0 x 5.0 x 1.5mm
  • Specification
    Back order lead time 40 Days
    Colour RGB
    Forward current 25mA
    Forward voltage Red 2.1V, Green 3.2V, Blue 3.2V
    Height 1.5mm
    Length 5.0mm
    Lens colour Clear
    Luminous intensity Red 600mcd, Green 1250mcd, Blue 350mcd
    Moq 5
    Mounting style Surface Mount
    Number of pins 6
    Operating temperature -40°C to +85°C
    Package 5050
    Packaging Cut Tape
    Power dissipation Red 60mW, Green 90mW, Blue 90mW
    Viewing angle 120°
    Wavelength Red 624nm, Green 525nm, Blue 470nm
    Width 5.0mm
