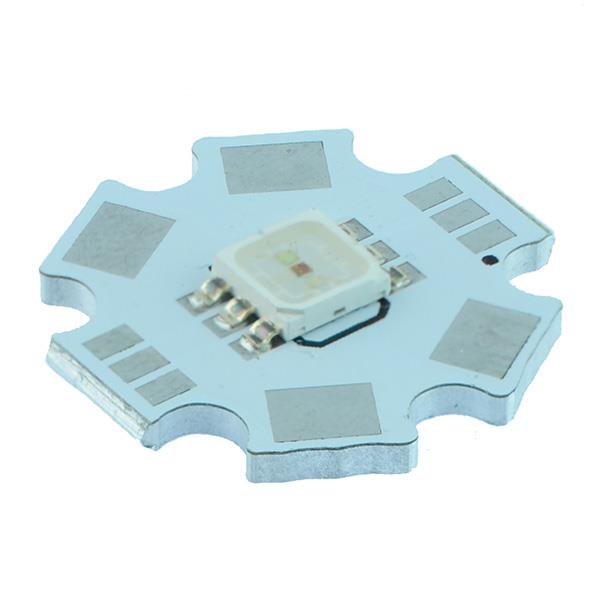

RGB 3W Star High Power SMD LED

SKU 480383

MPN: 480383

Availability:
21 in stock
Original price £2.64 - Original price £2.64
Original price
£2.64
£2.64 - £2.64
Current price £2.64
RGB high power 3W LED featuring red, green and blue dies providing high luminosity and excellent energy efficiency. The LED is mounted on a heatsink and is suitable for applications including automotive lighting, TVs, monitor backlights, traffic signals and many more.

  • Long lifespan
  • Superior UV resistance
  • Power dissipation: 2500mW
  • Continuous forward current: 300mA
  • Forward voltage: Red 2.0-2.4V, Green 3.0-3.2V, Blue 3.0-3.2V
  • Specification
    Back Order Lead Time 45 Days
    Colour RGB
    Forward Current 300mA
    Forward Voltage Red 2-2.4V, Green 3-3.2V, Blue 3-3.2V
    Luminous Flux Red 50lm, Green 80lm, Blue 20lm
    Mounting Style Surface Mount
    Number of Pins 6
    Operating Temperature -40°C to +80°C
    Package PCB Substrate
    Packaging Bulk
    Power Dissipation 2.5W
    Power Rating 3W
    Viewing Angle 120°
    Wavelength Red 625nm, Green 525nm, Blue 470nm
