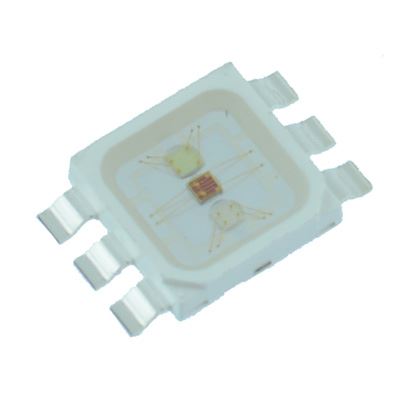

RGB 1W High Power SMD LED

SKU 480380

MPN: 480380

70 in stock
Original price £1.58 - Original price £1.58
Original price
£1.58 Inc VAT
£1.58 - £1.58
Current price £1.58 Inc VAT
RGB high power 1W LED featuring red, green and blue dies providing high luminosity and excellent energy efficiency. The LED is suitable for applications including automotive lighting, TVs, monitor backlights, traffic signals and many more.

  • Long lifespan
  • Superior UV resistance
  • Power dissipation: 1200mW
  • Continuous forward current: 150mA
  • Forward voltage: Red 2.0-2.4V, Green 3.0-3.2V, Blue 3.0-3.2V
  • Specification
    Back order lead time 45 Days
    Colour RGB
    Forward current 150mA
    Forward voltage Red 2-2.4V, Green 3-3.2V, Blue 3-3.2V
    Luminous flux Red 35lm, Green 55lm, Blue 15lm
    Mounting style Surface Mount
    Number of pins 6
    Operating temperature -40°C to +80°C
    Packaging Bulk
    Power dissipation 1.2W
    Power rating 1W
    Viewing angle 120°
    Wavelength Red 625nm, Green 525nm, Blue 470nm
