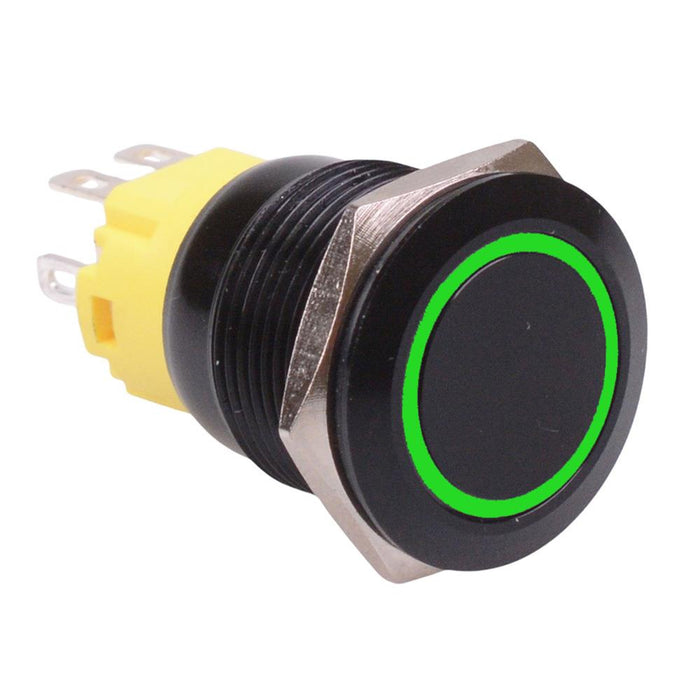

RGB Momentary 19mm Black Vandal Resistant Push Button Switch 12V SPDT
SKU 482543
MPN: 482543
Availability:
70 in stock
Original price
£6.46
-
Original price
£6.46
Original price
£6.46
Inc VAT
£6.46
-
£6.46
Current price
£6.46
Inc VAT
Momentary black vandal resistant push button switch featuring a RGB LED and IP67 protecton level. The switch fits 19mm panel cut-outs and is suitable for a wide range of 12V applications including automotive.
Common anode 1NO 1NC contacts Momentary switch action RGB LED 12V LED illumination 2.8x0.5mm terminals Requires 19mm panel cut-out Dimensions: 34.8 x 21.8mm (length x diameter)
Specification
Actuation | Momentary |
Back order lead time | 40 Days |
Colour | RGB |
Contact configuration | SPDT |
Contact rating | 5A 250VAC |
Current rating | 5A |
Electrical life | 200000 Cycles |
Illuminated | Yes |
Illumination colour | RGB |
Illumination voltage | 12VDC |
Material | Stainless Steel |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -20°C to +55°C |
Panel cut out | 19mm |
Protection level | IP67 |
Switch operation | On-(On) |
Terminal type | Quick Connect |
Voltage rating | 250VAC |
