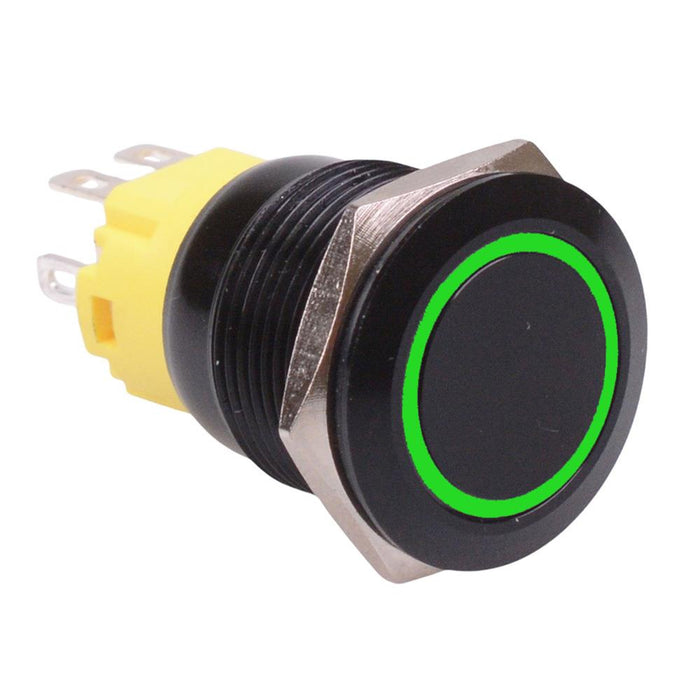

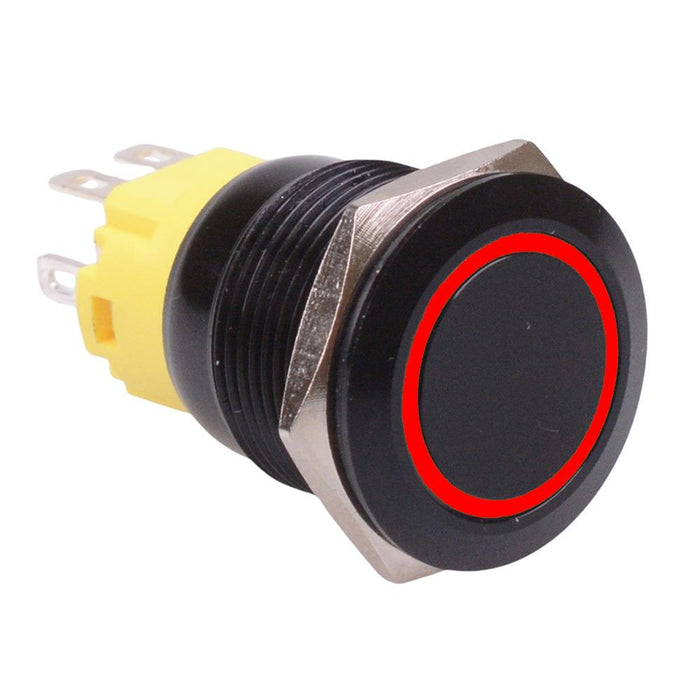

RGB 19mm Black Vandal Resistant Latching Metal Push Button Switch 12V

SKU 482544

MPN: 482544

Availability:
Only 1 left!
Original price £9.24 - Original price £9.24
Original price
£9.24 Inc VAT
£9.24 - £9.24
Current price £9.24 Inc VAT
Black vandal resistant push button switch featuring a RGB LED and latching switching action. The metal switch has an attractive design which compliments quality panels and dashboards. Featuring an IP67 protection rating, the switch is suitable for a wide range of applications including automotive.

  • Common cathode
  • 1NO 1NC contacts
  • Latching switch action
  • RGB LED
  • 12V LED illumination
  • 2.8mm terminals
  • Requires 19mm panel cut-out
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour RGB
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 200000 Cycles
    Illuminated Yes
    Illumination colour RGB
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 19mm
    Protection level IP67
    Switch operation On-(On)
    Terminal type Quick Connect
    Voltage rating 250VAC
