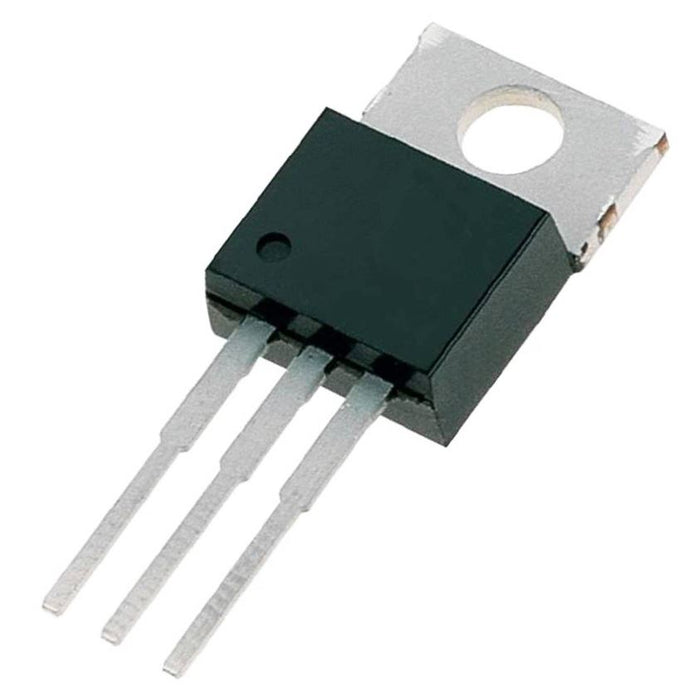

RFP12N10L MOSFET N Channel Transistor 12A 100V TO-220

SKU 480703

MPN: RFP12N10L

Availability:
17 in stock
Original price £2.12 - Original price £2.12
Original price
£2.12 Inc VAT
£2.12 - £2.12
Current price £2.12 Inc VAT
The RFP12N10L are N Channel enhance mode silicon gate power field effect transistors specifically designed for use with logic level (5V) driving sources in applications such as programmable controllers, automotive switching and solenoid drivers.

  • TO-220 package
  • Drain source voltage: 100V
  • Drain current: 12A
  • Power dissipation: 60W
  • Specification
    Back order lead time 5 Days
    Continuous drain current 12A
    Drain source on resistance 0.20Ω
    Drain source voltage 100V
    Input capacitance 900pF
    Maximum operating temperature 150°C
    Mounting type Through Hole
    Package TO220
    Power dissipation 60W
    Type N-Channel
