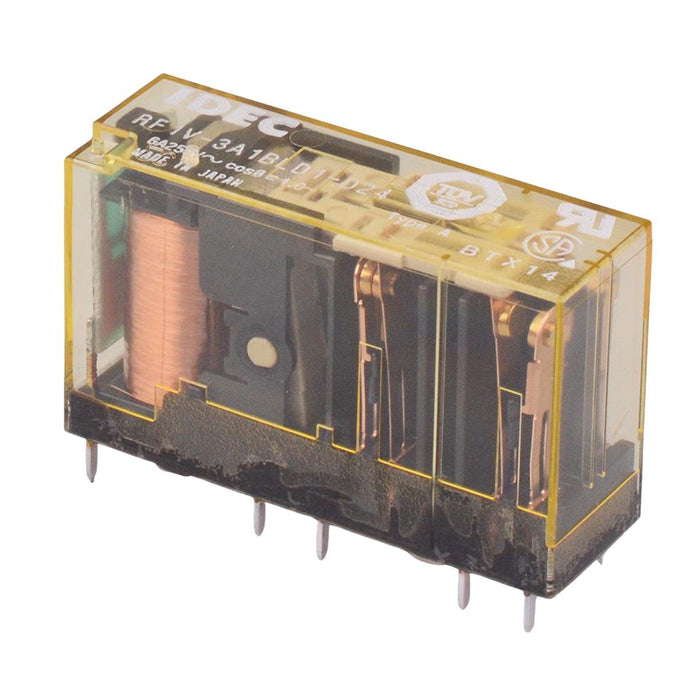

RF1V-3A1BLD1-D24 24VDC 4-Pole Force Guided Relay CEMF 3NO-1NC IDEC
by IDEC
SKU 493246
MPN: RF1V-3A1BLD1-D24
Availability:
10 in stock
Original price
£27.53
-
Original price
£27.53
Original price
£27.53
£27.53
-
£27.53
Current price
£27.53
The RF1V-3A1BLD1-D24 is a force guided relay by IDEC, featuring a compact and slim package. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance. The relay is suitable for socket and PCB mounting, it is also compatible with the finger-safe SJ series sockets.
Coil voltage: 24VDC Allowable switching curent: 6A Without LED indicator Counter-electromotive force Contact configuration: 4-pole 3NO-1NC PCB terminals Compatible socket: SF1V-4-07L, SF1V-4-61 Dimensions: 40 x 13 x 24mm (length x width x height) Force guided contact mechanism (EN50205 Type A TUV approved)
Specification
| Back Order Lead Time | 256 Days |
| Coil Resistance | 1600Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | 3NO-1NC |
| Electrical Life | 100,000+ Cycles |
| Maximum Continuous Voltage | 26.4VDC |
| Maximum Switching Current | 6A |
| Maximum Switching Voltage | 250VAC, 125VDC |
| Mechanical Life | 10,000,000+ Cycles |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 10 |
| Power Consumption | 1500VA |
| Rated Load | 6A 250VAC / 30VDC |
| Terminal Type | Through Hole |
