RF1V-3A1BL-D24 24VDC 4-Pole Force Guided Relay 3NO-1NC IDEC

by IDEC
SKU 490233

MPN: RF1V-3A1BL-D24

Availability:
10 in stock
Original price £39.60 - Original price £39.60
Original price
£39.60 Inc VAT
£39.60 - £39.60
Current price £39.60 Inc VAT

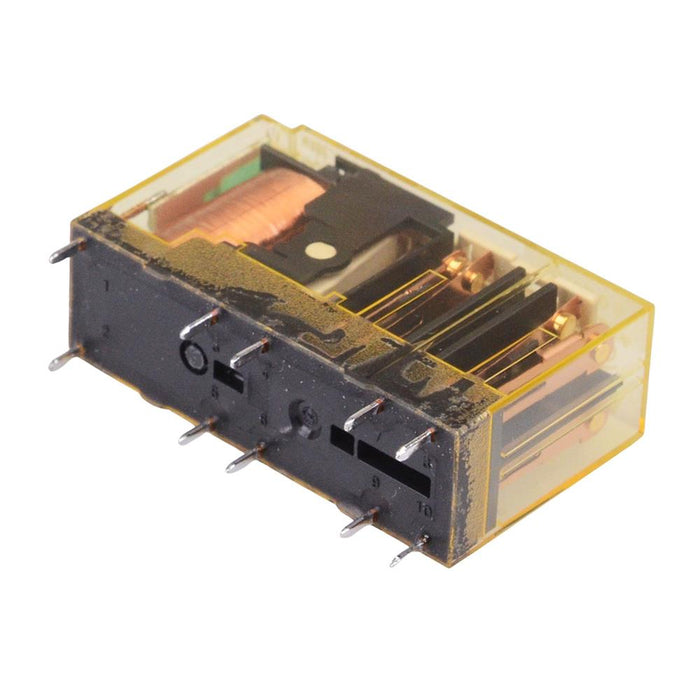

The RF1V-3A1BL-D24 is a force guided relay by IDEC, featuring a compact and slim package with a built-in LED indicator. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance. The relay is suitable for socket and PCB mounting, it is also compatible with the finger-safe SJ series sockets.

  • Coil voltage: 24VDC
  • Allowable switching curent: 6A
  • With LED indicator
  • Contact configuration: 4-pole 3NO-1NC
  • PCB terminals
  • Compatible socket: SF1V-4-07L, SF1V-4-61
  • Dimensions: 40 x 13 x 24mm (length x width x height)
  • Force guided contact mechanism (EN50205 Type A TÜV approved)
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 130 Days
    Coil resistance 1600Ω
    Coil voltage 24VDC
    Contact arrangement 3NO-1NC
    Maximum continuous voltage 26.4VDC
    Maximum switching current 6A
    Moq 1
    Mounting type PCB
    Number of contacts 10
    Rated load 6A 250VAC, 6A 30VDC
    Terminal type Through Hole
