RF1V-3A1BL-D12 12VDC 4-Pole Force Guided Relay 3NO-1NC IDEC
by IDEC
SKU 490232
MPN: RF1V-3A1BL-D12
Availability:
10 in stock
Original price
£39.60
-
Original price
£39.60
Original price
£39.60
Inc VAT
£39.60
-
£39.60
Current price
£39.60
Inc VAT

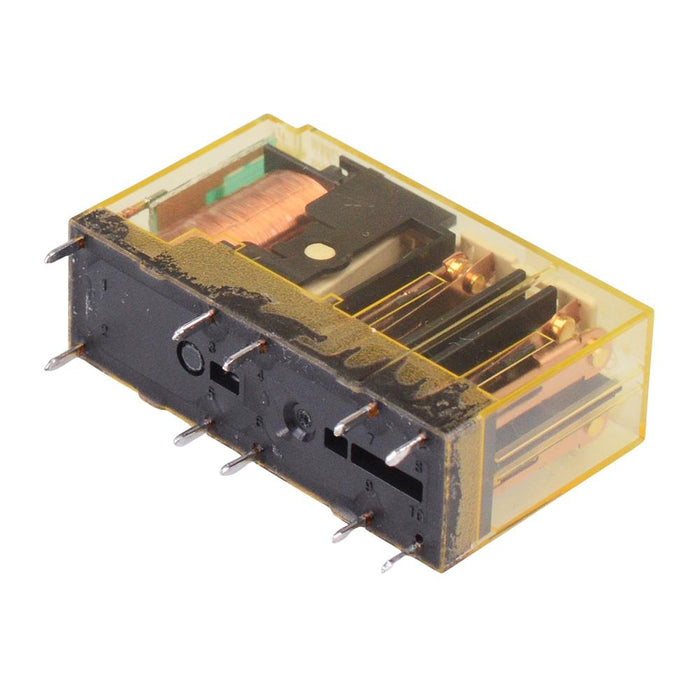

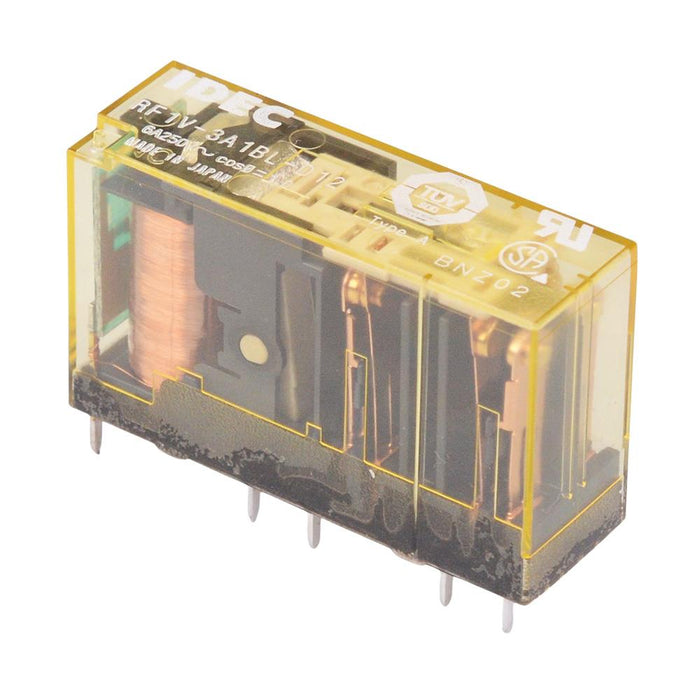

The RF1V-3A1BL-D12 is a force guided relay by IDEC, featuring a compact and slim package with a built-in LED indicator. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance. The relay is suitable for socket and PCB mounting, it is also compatible with the finger-safe SJ series sockets.
Coil voltage: 12VDC Allowable switching curent: 6A With LED indicator Contact configuration: 4-pole 3NO-1NC PCB terminals Compatible socket: SF1V-4-07L, SF1V-4-61 Dimensions: 40 x 13 x 24mm (length x width x height) Force guided contact mechanism (EN50205 Type A TÜV approved)
Specification
| Ambient temperature | -40°C to +85°C |
| Back order lead time | 130 Days |
| Coil resistance | 400Ω |
| Coil voltage | 12VDC |
| Contact arrangement | 3NO-1NC |
| Maximum continuous voltage | 13.2VDC |
| Maximum switching current | 6A |
| Moq | 1 |
| Mounting type | PCB |
| Number of contacts | 10 |
| Rated load | 6A 250VAC, 6A 30VDC |
| Terminal type | Through Hole |
