RF1V-2A2B-D24 24VDC 4-Pole Force Guided Relay 2NO-2NC IDEC
by IDEC
SKU 490229
MPN: RF1V-2A2B-D24
Availability:
10 in stock
Original price
£32.80
-
Original price
£32.80
Original price
£32.80
Inc VAT
£32.80
-
£32.80
Current price
£32.80
Inc VAT

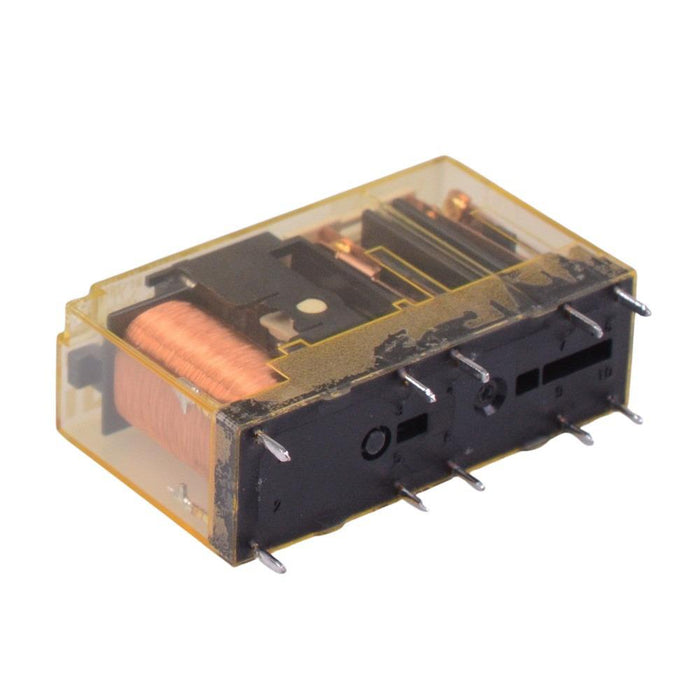

The RF1V-2A2B-D24 is a force guided relay by IDEC, featuring a compact and slim package. The relay features a rapid response time ensuring safety by turning the load off quickly. The relay is suitable for use in machine tools and high vibration environments due to the excellent shock resistance. The relay is suitable for socket and PCB mounting, it is also compatible with the finger-safe SJ series sockets.
Coil voltage: 24VDC Allowable switching curent: 6A Without LED indicator Contact configuration: 4-pole 2NO-2NC PCB terminals Compatible socket: SF1V-4-07L, SF1V-4-61 Dimensions: 40 x 13 x 24mm (length x width x height) Force guided contact mechanism (EN50205 Type A TÜV approved)
Specification
| Ambient temperature | -40°C to +85°C |
| Back order lead time | 130 Days |
| Coil resistance | 1600Ω |
| Coil voltage | 24VDC |
| Contact arrangement | 2NO-2NC |
| Maximum continuous voltage | 26.4VDC |
| Maximum switching current | 6A |
| Moq | 1 |
| Mounting type | PCB |
| Number of contacts | 10 |
| Rated load | 6A 250VAC, 6A 30VDC |
| Terminal type | Through Hole |
