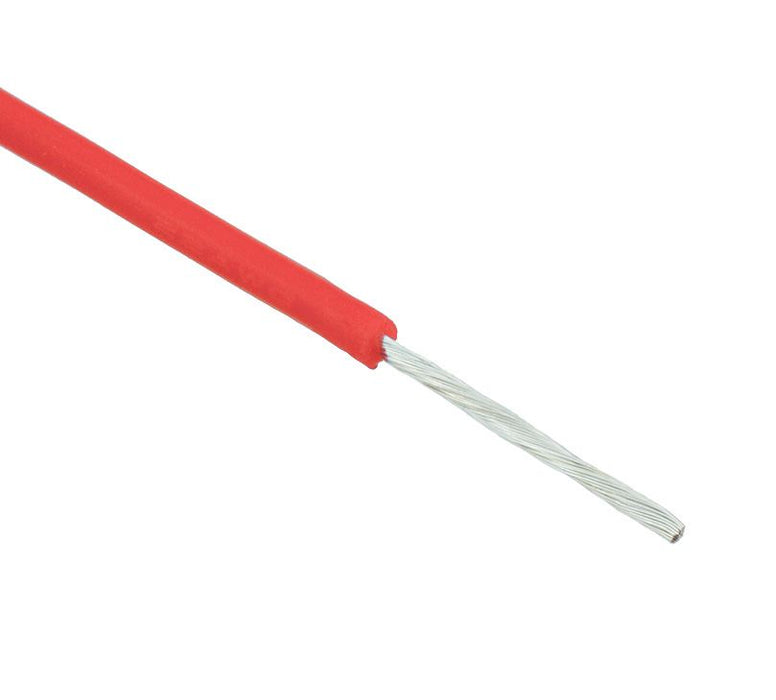

Red Silicone Lead Wire 20AWG 100/0.08mm (price per metre)

SKU 403012

MPN: 403012

Availability:
Out of stock
Sold out
Original price £0.65 - Original price £0.65
Original price
£0.65 Inc VAT
£0.65 - £0.65
Current price £0.65 Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.

  • Wide temperature range
  • Flexible and lightweight
  • Rated voltage: 600V
  • 100/0.08mm copper stranding
  • Cut to length in pieces up to 25 metres
  • Specification
    Back order lead time 120 Days
    Colour Red
    Conductor cross section 0.5mm²
    Conductor diameter 0.92mm
    Conductor material Tinned Copper
    Conductor stranding 100/0.08mm
    Current rating 13.9A
    Insulation material Silicone
    Insulation thickness 0.55mm
    Operating temperature -60°C to 200°C
    Overall diameter 1.8mm
    Voltage rating 600V
    Wire gauge 20AWG
