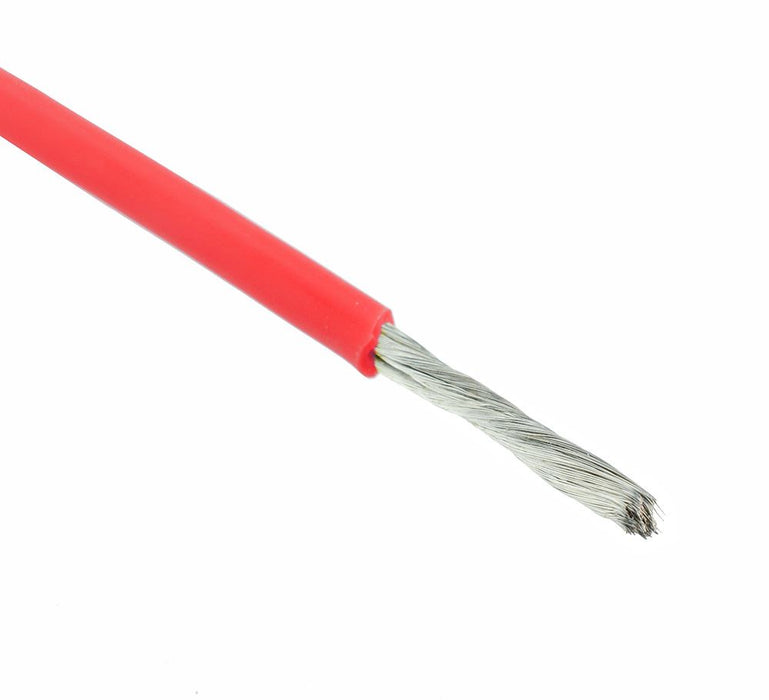

Red Silicone Lead Wire 14AWG 400/0.08mm (price per metre)

SKU 403006

MPN: 403006

Availability:
731 in stock
Original price £1.36 - Original price £1.36
Original price
£1.36 Inc VAT
£1.36 - £1.36
Current price £1.36 Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.

  • Wide temperature range
  • Flexible and lightweight
  • Rated voltage: 600V
  • 400/0.08mm copper stranding
  • Cut to length in pieces up to 25 metres
  • Specification
    Back order lead time 120 Days
    Colour Red
    Conductor cross section 2.07mm²
    Conductor diameter 1.78mm
    Conductor material Tinned Copper
    Conductor stranding 400/0.08mm
    Current rating 55.5A
    Insulation material Silicone
    Insulation thickness 0.9mm
    Operating temperature -60°C to 200°C
    Overall diameter 3.5mm
    Voltage rating 600V
    Wire gauge 14AWG
