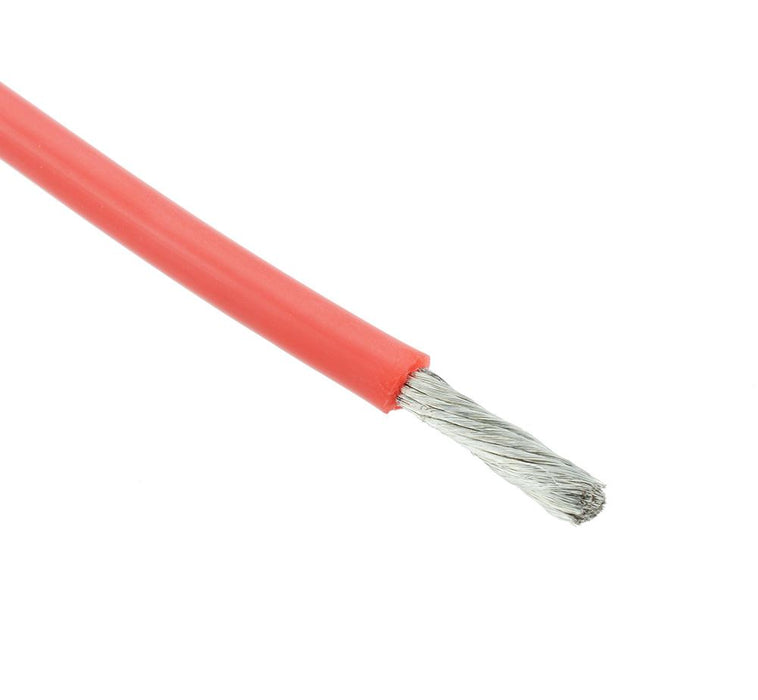

Red Silicone Lead Wire 12AWG 680/0.08mm (price per metre)

SKU 403004

MPN: 403004

Availability:
132 in stock
Original price £2.58 - Original price £2.58
Original price
£2.58 Inc VAT
£2.58 - £2.58
Current price £2.58 Inc VAT
Silicone insulated wire with a copper conductor suitable for a wide range of applications.

  • Wide temperature range
  • Flexible and lightweight
  • Rated voltage: 600V
  • 680/0.08mm copper stranding
  • Cut to length in pieces up to 25 metres
  • Specification
    Back order lead time 120 Days
    Colour Red
    Conductor cross section 3.4mm²
    Conductor diameter 2.48mm
    Conductor material Tinned Copper
    Conductor stranding 680/0.08mm
    Current rating 88.5A
    Insulation material Silicone
    Insulation thickness 1.00mm
    Operating temperature -60°C to 200°C
    Overall diameter 4.5mm
    Voltage rating 600V
    Wire gauge 12AWG
