Red Positive M10 Stud 8 Point Power Distribution Post 160A
SKU 491965
MPN:
Availability:
Only 1 left!
Original price
£6.54
-
Original price
£6.54
Original price
£6.54
£6.54
-
£6.54
Current price
£6.54

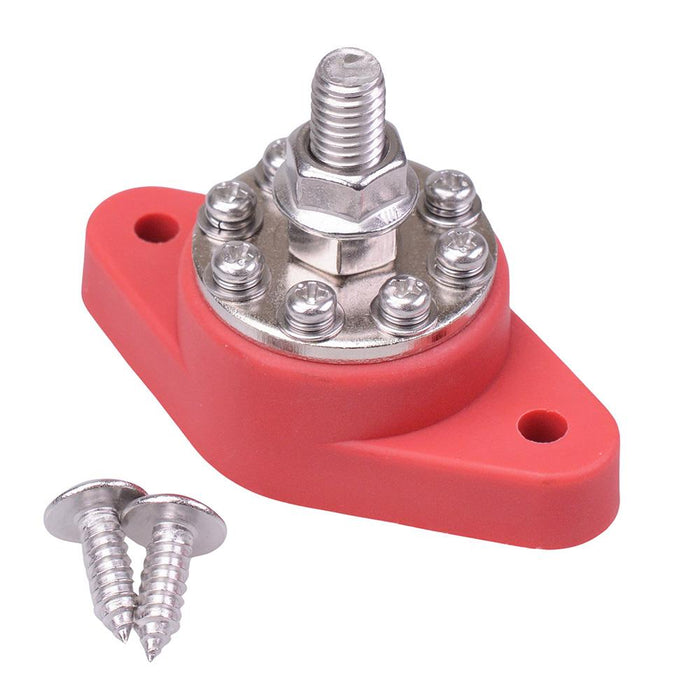

Red distribution post featuring an M10 central stud and 8 small M4 terminals. The post is designed for distributing a larger main feed into lower current circuits, and is more compact than traditional busbars. Suitable applications including automotive and marine with limited space.
Stud size: M10 and M4 Stud material: stainless steel Housing material: nylon Voltage rating: 48VDC Current rating: 160A (20A per stud) Comes with 2 screws Mounting holes: 6.5mm Mounting hole pitch: 64mm Dimensions: 55.0 x 44.4 x 84.0mm (height x width x length)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Current Rating | 160A |
| MOQ | 1 |
| Mounting Type | Chassis Mount |
| Termination Method | M10 Stud |
| Voltage Rating | 48VDC |
