Red On-On 28mm Vandal Latching Push Button Switch DPDT 12V

SKU 486526

MPN: 486526

Availability:
18 in stock
Original price £12.59 - Original price £12.59
Original price
£12.59 Inc VAT
£12.59 - £12.59
Current price £12.59 Inc VAT

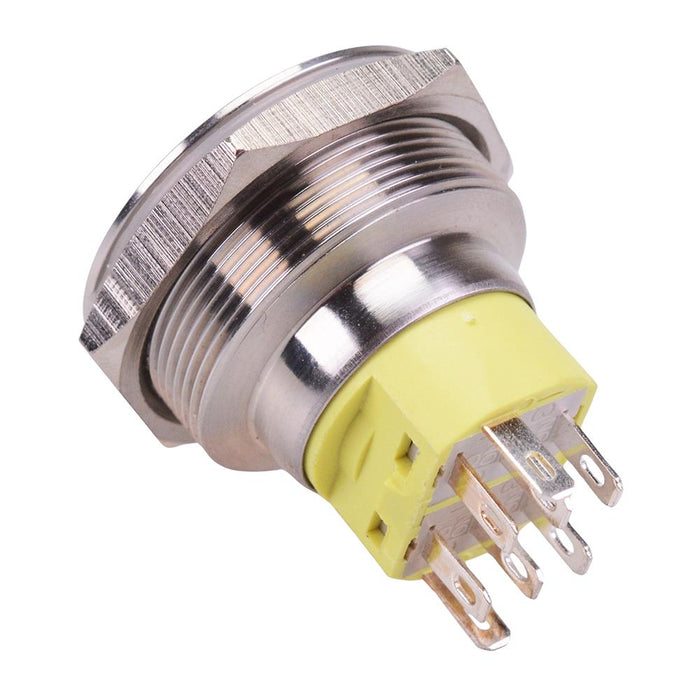

Latching vandal resistant 28mm push button switch featuring a red 12V LED and DPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • Red LED
  • 12V illumination voltage
  • IP67 protection rating
  • 28mm panel cut-out diameter
  • 2NO/2NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour Red
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of poles 2
    Number of positions 2
    Operating temperature -20°C to +85°C
    Panel cut out 28mm
    Protection level IP67
    Switch operation On-On
