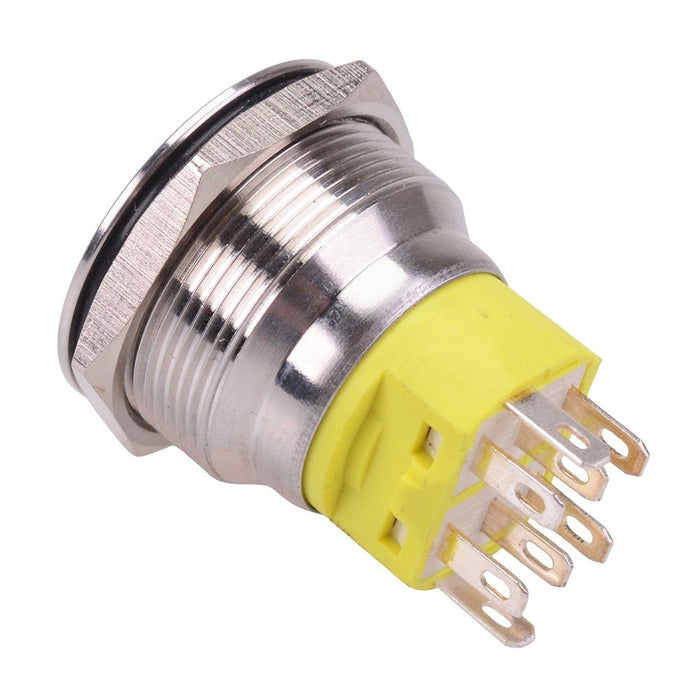

Red LED On-On Latching 25mm Vandal Push Button Switch DPDT

SKU 483349

MPN: 483349

Availability:
Only 5 left!
Original price £10.31 - Original price £10.31
Original price
£10.31
£10.31 - £10.31
Current price £10.31
Latching vandal resistant 25mm push button switch featuring a red 12V LED and DPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

  • Latching action
  • Red LED
  • 12V illumination voltage
  • IP67 protection rating
  • 25mm panel cut-out diameter
  • 2NO/2NC contacts
  • 2.8mm terminals
  • Rating: 5A 250VAC
  • Dimensions: 35.6 x 28mm (length x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 30 Days
    Colour Red
    Contact Configuration DPDT
    Contact Rating 5A 250VAC
    Current Rating 5A
    Electrical Life 50,000 Cycles
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 12VDC
    Material Stainless Steel
    Mounting Style Panel
    Number of Positions 2
    Operating Temperature -25°C to +85°C
    Panel Cut Out 25mm
    Protection Level IP67
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 250VAC
