Red On-On 22mm Vandal Push Button Switch 2NO/2NC
SKU 483345
MPN: 483345
Availability:
18 in stock
Original price
£8.95
-
Original price
£8.95
Original price
£8.95
Inc VAT
£8.95
-
£8.95
Current price
£8.95
Inc VAT

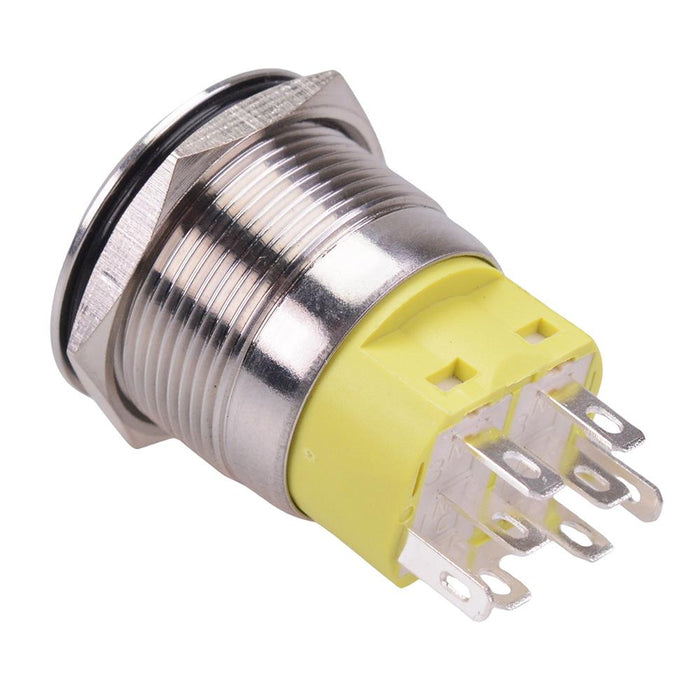

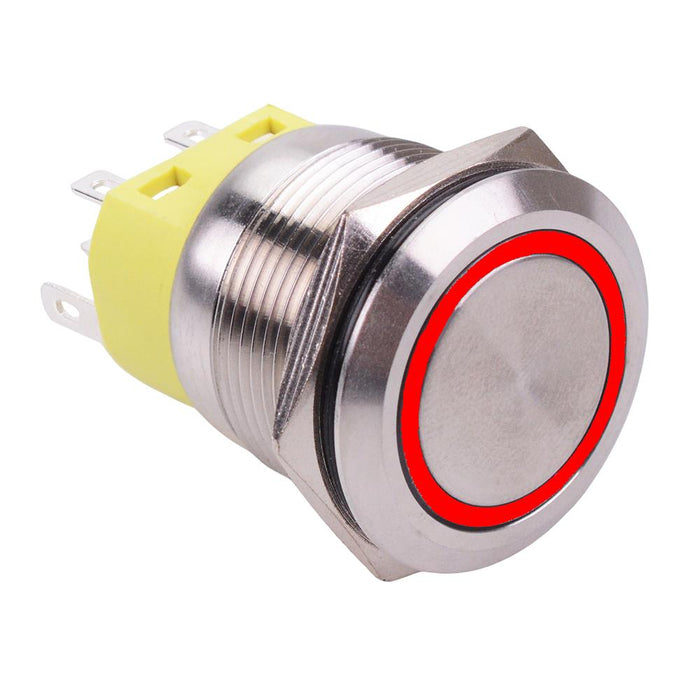

Vandal resistant latching push button switch manufactured from stainless steel, featuring a red LED and 2NO/2NC contacts. The switch features IP67 protection and is suitable for 12V applications.
Latching On-On action Red LED 12V illumination voltage IP67 protection rating 22mm panel cut-out diameter 2NO/2NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
Actuation | Latching |
Back order lead time | 30 Days |
Colour | Red |
Contact configuration | DPDT |
Contact rating | 5A 250VAC |
Current rating | 5A |
Electrical life | 50,000 Cycles |
Illuminated | Yes |
Illumination colour | Red |
Illumination voltage | 12VDC |
Material | Stainless Steel |
Mounting style | Panel |
Number of positions | 2 |
Operating temperature | -25°C to +85°C |
Panel cut out | 22mm |
Protection level | IP67 |
Switch operation | On-On |
Terminal type | Solder |
Voltage rating | 250VAC |
