Red On-Off Latching 12mm Round Push Button Switch SPST IP67
by Dailywell
SKU 490703
MPN: PAL6B2M1CESA3-5
Availability:
200 in stock
Original price
£3.02
-
Original price
£3.02
Original price
£3.02
£3.02
£3.02
-
£3.02
Current price
£3.02

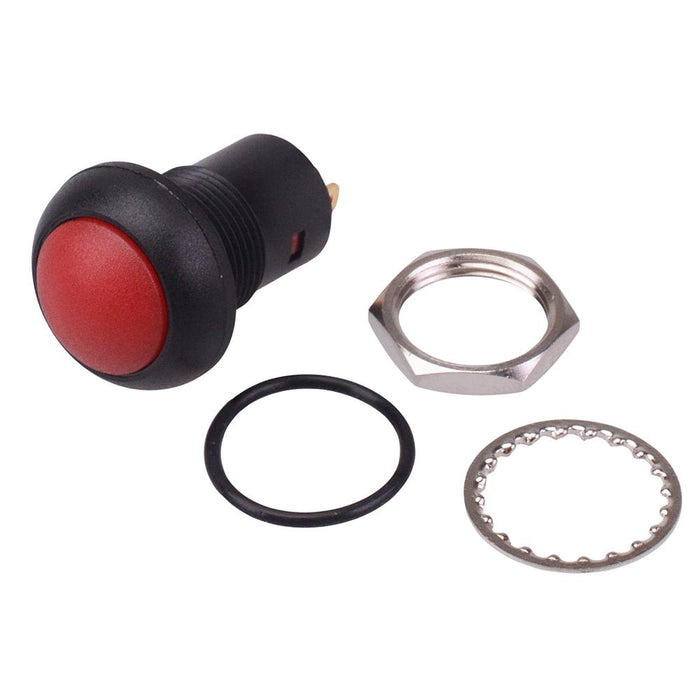

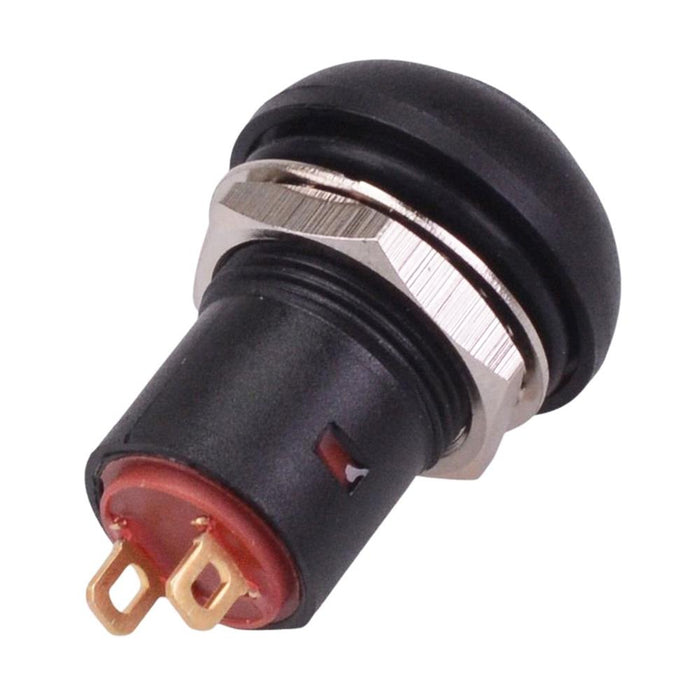

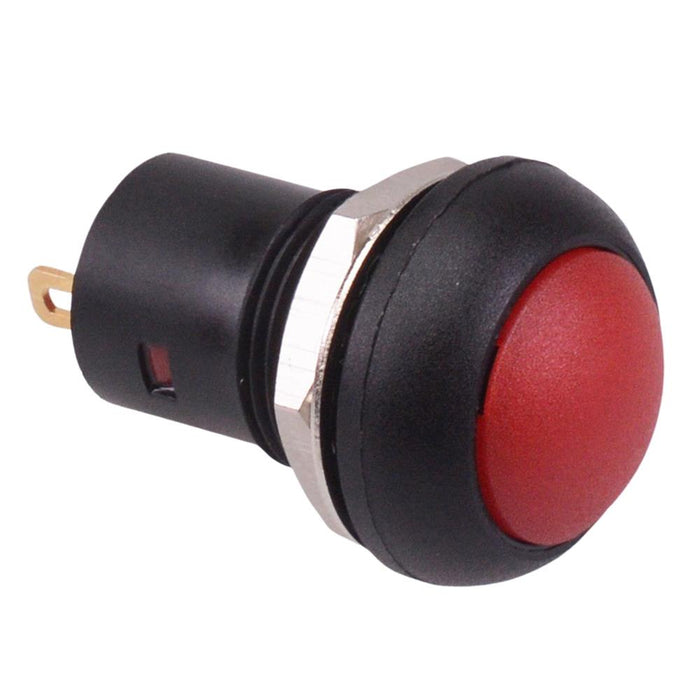

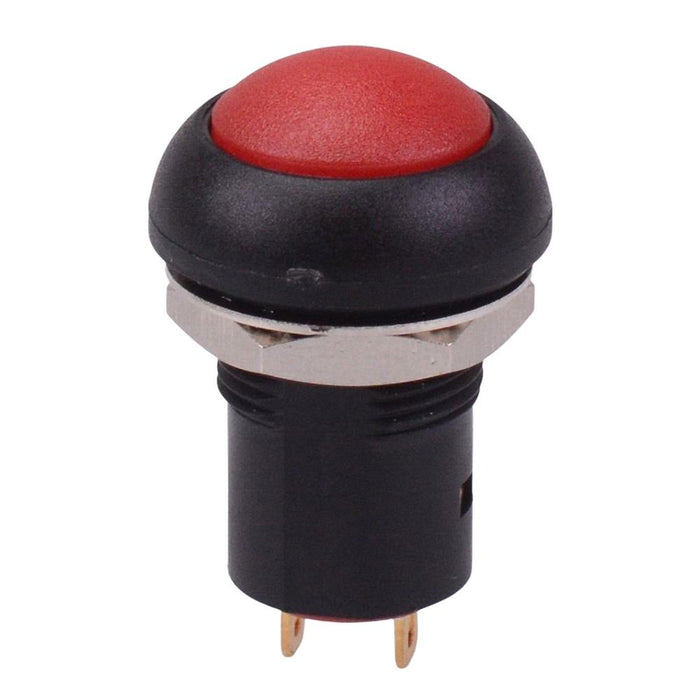

Red miniature circular latching push button switch featuring SPST contacts and IP67 protection rating. The switch features solder lug terminals and requires a 13.6mm panel cut-out. The 24VDC rating makes it ideal for a wide range of applications including automotive and marine.
Off-On operation SPST contacts Panel cut-out: 13.6mm Panel thickness: 1.5-4mm Protection level: IP67 Solder lug terminals Epoxy sealed Rating: 100mA 24VDC, 2A 125VAC Dimensions: 28 x 17.5mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 100mA 24VDC, 2A 125VAC |
| Current Rating | 100mA @ 24VDC |
| Electrical Life | 200,000 Cycles |
| Illuminated | No |
| Material | Polyamide 6/6 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | PA |
| Protection Level | IP67 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC, 125VAC |
