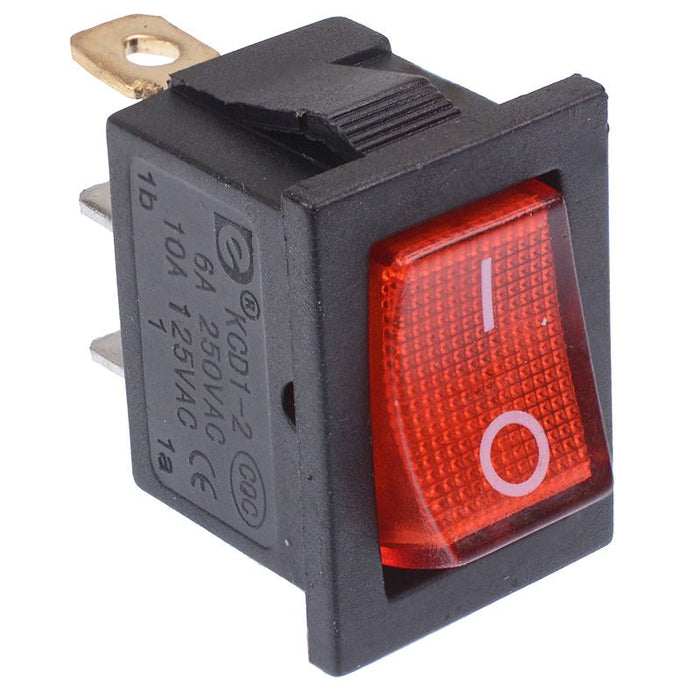

Red On-Off illuminated Rectangle Rocker Switch SPST 230V
SKU 482808
MPN: 482808
Availability:
874 in stock
Original price
£0.60
-
Original price
£0.60
Original price
£0.60
£0.60
-
£0.60
Current price
£0.60
Red 230V illuminated rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of domestic and commerical applications.
On-Off action SPST contacts 230V illumination 4.8mm quick connect terminals Panel cut-out: 19.2 x 13mm Dimensions: 25 x 21 x 15mm (Height x Length x Width) Rating: 10A 125VAC, 6A 250VAC
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 230VAC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 19.2 x 13mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
