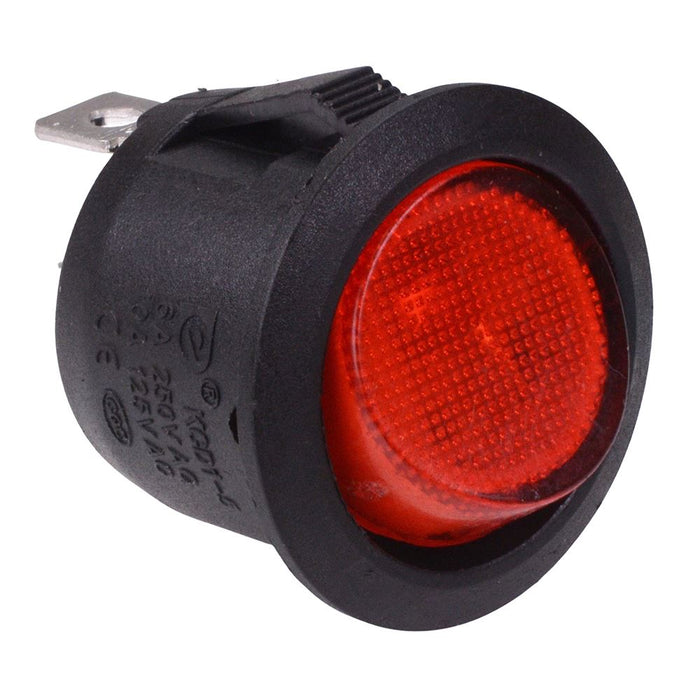

Red On-Off 12V illuminated Circular Rocker Switch SPST 10A
SKU 488312
MPN: 488312
Availability:
477 in stock
Original price
£0.60
-
Original price
£0.60
Original price
£0.60
Inc VAT
£0.60
-
£0.60
Current price
£0.60
Inc VAT
Round rocker switch featuring 12V red illumination and SPST contacts. The switch features 4.8mm quick connect terminals and requires a 20mm panel cut-out, suitable for a wide range of applications including automotive.
Red 12V illumination On-Off operation SPST contacts 4.8mm quick connect terminals Rating: 6A 250VAC, 10A 125VAC Panel cut-out: 20mm Dimensions: 29.2 x 23mm (height x diameter)
Specification
| Actuation | Latching |
| Back order lead time | 40 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 6A 250VAC, 10A 125VAC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 20mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
