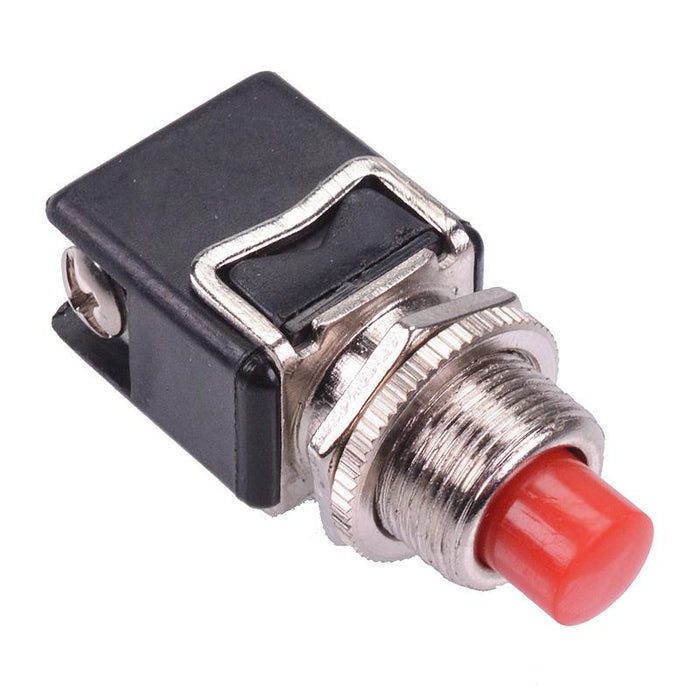

Red Off-(On) Momentary 12mm Push Button Switch SPST 4A
SKU 482783
MPN: 482783
Availability:
Out of stock
Sold out
Original price
£1.34
-
Original price
£1.34
Original price
£1.34
Inc VAT
£1.34
-
£1.34
Current price
£1.34
Inc VAT
Red momentary Off-(On) push to make switch featuring SPST contacts and screw terminals. The switch features a compact design and 4A rating making them suitable for a wide range of applications.
Off-(On) action SPST contacts Screw terminals 7.7mm diameter button Panel cut-out: 12mm Dimensions: 39.5 x 17mm (Height x Width)
Specification
| Actuation | Momentary |
| Back order lead time | 40 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact rating | 8A 125VAC, 4A 250VAC |
| Current rating | 8A @ 125VAC |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 12mm |
| Switch operation | Off-(On) |
| Terminal type | Screw |
| Voltage rating | 250VAC |
