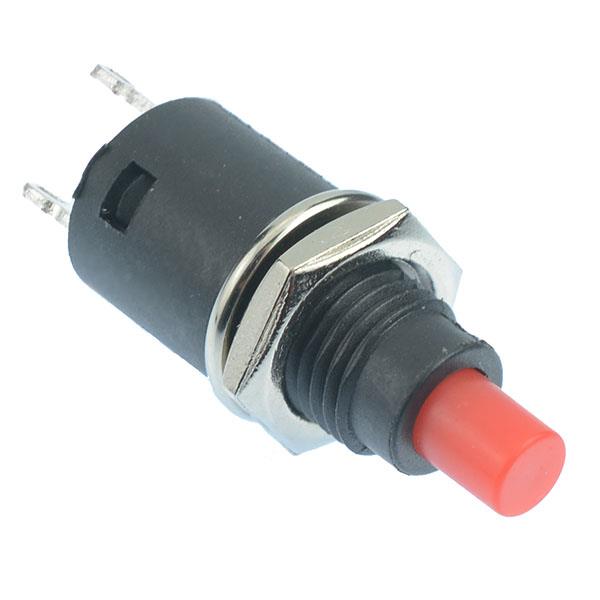

Red Off-(On) Miniature Momentary 7mm Push Button Switch SPST

SKU 482250

MPN: 482250

Availability:
847 in stock
Original price £0.44 - Original price £0.44
Original price
£0.44 Inc VAT
£0.44 - £0.44
Current price £0.44 Inc VAT
Miniature momentary push button switch featuring a red button and compact design suitable for low power applications.

  • Off-(On) momentary operation
  • 7.2mm panel cut-out
  • Rating: 3A 125VAC, 1.5A 250VAC
  • Solder lug terminals
  • Dimensions: 27.7 x 9mm (Height x Diameter)
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour Red
    Contact configuration SPST
    Contact rating 1.5A 250VAC
    Current rating 1.5A
    Electrical life 10,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 7.2mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
