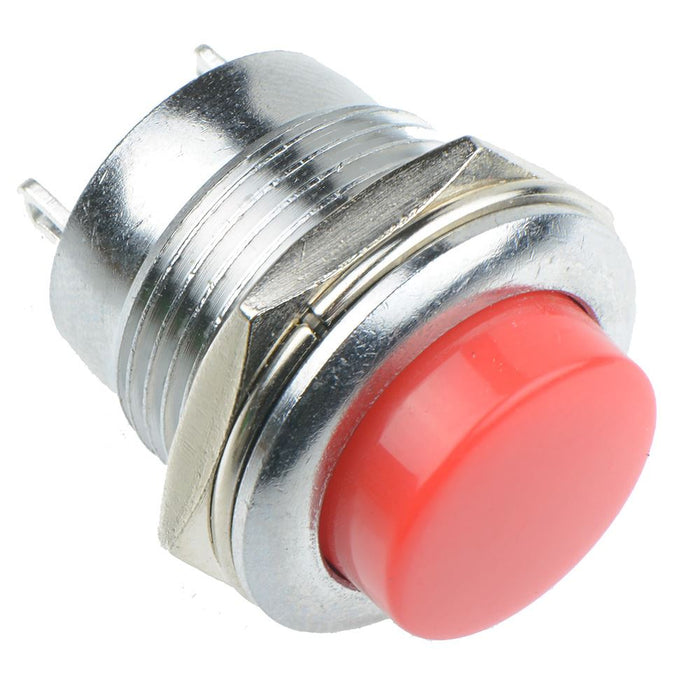

Red Off-(On) Metal Low Profile 16mm Round Momentary Push Button Switch 3A SPST

by Canal
SKU 550392

MPN: PB-02-MM-R

Availability:
322 in stock
Original price £1.88 - Original price £1.88
Original price
£1.88 Inc VAT
£1.88 - £1.88
Current price £1.88 Inc VAT
High quality metal push button switch with Off-(On) momentary action. Suitable for panel mounting the switch comes with a nickel plated brass body and locking nut. Can be used for a wide variety of applications.

  • Colour: Red Button
  • Rating: 6A 125VAC, 3A 250VAC
  • Off-(On) momentary action
  • Nickel Plated Metal Housing
  • 16mm Panel Cut Out
  • 12.9mm Button Diameter
  • Solder Lug Terminals
  • SPST contacts
  • 6mm maximum panel thickness
  • Specification
    Actuation Momentary
    Back order lead time 45 Days
    Colour Red
    Contact configuration SPST
    Contact rating 6A 125VAC, 3A 250VAC
    Current rating 6A @ 125VAC
    Electrical life 10000 Cycles Min
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of positions 2
    Operating temperature 0°C to +85°C
    Panel cut out 16mm
    Switch operation Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
